Stop Block Cylinder
Redesigned to reduce stop block cylinder repairs.
CONTACT US TO ORDER!
Simpson Spare Parts
Engineered and designed to provide maximum performance and efficiency.
Order today!
Available for Simpson Hartley controllers and bond determinators
|
AFFECTED PRODUCTS: |
AFFECTED PART: |
REPLACEMENT PART: |
|
2500 Simpson Hartley |
51.036.1.1 |
51.299.1.1 |
|
2502 Simpson Hartley |
51.036.1.1 |
51.299.1.1 |
|
2550 Simpson Bond Determinator |
51.036.1.1 |
51.299.1.1 |
|
2552 Simpson Bond Determinator |
51.036.1.1 |
51.299.1.1 |
The Challenge
The stop block retrofit kit was designed to address customer reports of excessive stop block cylinder repairs due to premature failure of the cylinder rod and cylinder wall ruptures.
Simpson Solution

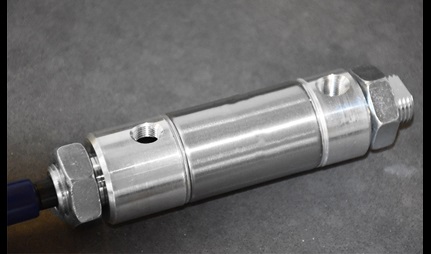

The original stop block cylinder has been upgraded with a larger cylinder to strengthen the design. An upgrade kit has been designed to completely replace the original cylinder design.
Conversion Kit
The stop block conversion kit replaces the original part and consists of:

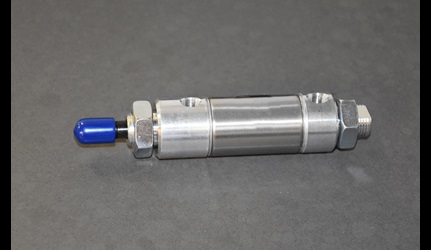

- A new air cylinder (1-1/4″ Bore – 7/16″ Dia. Rod versus 3/4″ Bore – 1/4″ Dia. Rod) which is bracket mounted at both ends.
- Cylinder Mounting Block
- Stop Block
- Fasteners and Fittings required for installation
- Drawings and Instructions for installation
Installation requires removal of existing stop block assembly, drilling of new mounting holes and assembly of new components. Estimated time for completion – 1 hour.
UPGRADE DETAILS
Model:
Part Number:
Conversion Kit Number:
Replaces Part Number:
2500 & 2552 Simpson Hartleys
51.299.1.1
2552.143.501.4
51.036.1.1
2550 & 2552 Simpson Bond Determinators
51.299.1.1
2552.143.501.4
51.036.1.1
