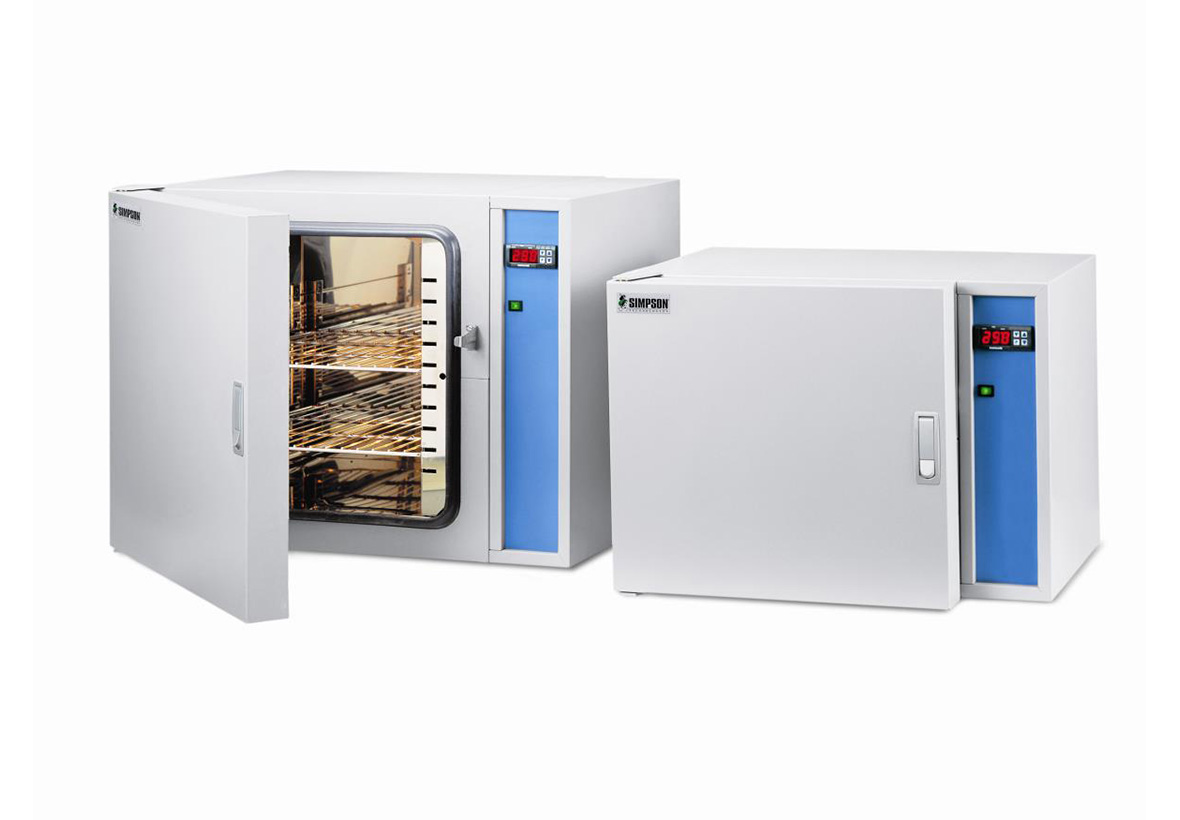

Drying Oven
Model 42129
The Drying Oven is used to prepare clay bonded molding sands for testing dry sand properties.
Dry strength is the measure of resistance to sand inclusion and erosion type defects. In addition, the oven can be used to determine the moisture percentage of new sands and prepared molding sands. Washed sand samples can also be dried in this oven.
Each oven includes two adjustable nickel wire plated shelves with multi-position settings and a corrosion resistant polished stainless-steel interior. The oven temperature is adjustable in the range of 10C – 300C (50F – 572F) and features a forced air convection fan. Both ovens include a PID temperature controller which has a large bright LED mounted behind a smooth membrane control panel.
Part numbers
AFS:
- #215803-301
- #215804-301
- #215806-301
- #215800-301
Part numbers
Metric:
- #215803-301
- #215804-301
- #215806-301
- #215800-301
Sand casting process
- Clay Bonded Sand
- Cold Box
- Core Oil
- Hotbox/Warmbox
- Nobake/Air-set
- Shell/Croning
Specifications
Part Number: 215803-301
Chamber Capacity: 65L
Chamber Dimensions: 420mm x 400mm x 392mm (16.5"x15.7"x15.4")
Power Requirements: 110-120 Volts, 50/60 Hz
Length: 22.4" / 570mm
Width: 22.4" / 570mm
Height: 30.1" / 765mm
Weight: 130lb / 45kg
Part Number: 215804-301
Chamber Capacity: 65L
Chamber Dimensions: 420mm x 400mm x 392mm (16.5"x15.7"x15.4")
Power Requirements: 220-240 Volts, 50/60 Hz
Length: 22.4" / 570mm
Width: 22.4" / 570mm
Height: 30.1" / 765mm
Weight: 130lb / 45kg
Part Number: 215806-301
Chamber Capacity: 125L
Chamber Dimensions: 520mm x 500mm x 492mm (20.5"x19.7"x19.4")
Power Requirements: 110-120 Volts, 50/60 Hz
Length: 26.4" / 670mm
Width: 26.4" / 670mm
Height: 34.1" / 865mm
Weight: 176lb / 60kg
Part Number: 215800-301
Chamber Capacity: 125L
Chamber Dimensions: 520mm x 500mm x 492mm (20.5"x19.7"x19.4")
Power Requirements: 220-240 Volts, 50/60 Hz
Length: 26.4" / 670mm
Width: 26.4" / 670mm
Height: 34.1" / 865mm
Weight: 176lb / 60kg
