Muffle Furnace

Model 42127

The Muffle Furnace is used to calculate loss on ignition (LOI) and volatiles on both chemically and clay bonded foundry sands.

This calculation allows foundries to monitor and control organic additives in clay bonded sand such as sea coal, cellulose and cereal and binder percentages in chemically bonded sand.

The furnace temperature is adjustable between 100°C – 1,100°C (212oF – 2,012oF) with the operating temperature displayed on a digital display. The furnace is available in a small size with chamber dimensions of 250mm x 135mm x 140mm (9.8” x 5.3” x 5.5”) or a large size with chamber dimensions of 330mm x 200mm x 200mm (13” x 8” x 8”). Both are equipped with a PID temperature controller which has a large, bright digital LED that will display either the set point or process temperature.

Part numbers

AFS:

#0042127-5C-2A
#0042127-13C-2A

Metric:

#0042127-5C-2A
#0042127-13C-2A

Sand casting process

Clay Bonded Sand
Cold Box
Core Oil
Hotbox/Warmbox
Nobake/Air-set
Shell/Croning

Part Number: 0042127-5C-2A

Chamber Dimensions: 250mm x 135mm x 140mm (9.8"x5.3"x5.5")
Power Requirements: 220-240 Volts, 50/60 Hz
Length: 16" / 250mm
Width: 23" / 585mm
Height: 14.8" / 375mm
Weight: 80lb / 37kg

Part Number: 0042127-13C-2A

Chamber Dimensions: 330mm x 200mm x 200mm (13"x8"x8")
Power Requirements: 220-240 Volts, 50/60 Hz
Length: 24" / 330mm
Width: 25.8" / 655mm
Height: 17" / 432mm
Weight: 125lb / 58kg

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Related Content

Digital Pneumatic Sand Squeezer - Model 42160

Designed to mimic the compressing action of an automatic molding machine in order to measure the effects the sand has upon its compaction abilities.

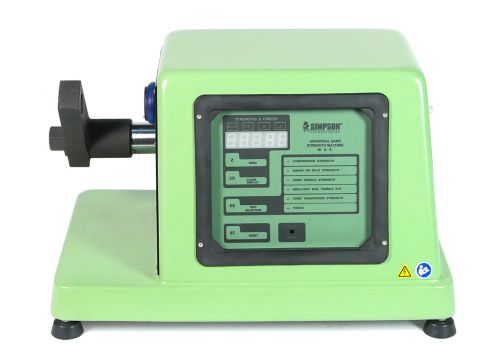

Electronic Universal Sand Strength Machine - Model 42104

Determines the strength properties of clay and/or chemically bonded foundry sand specimens.

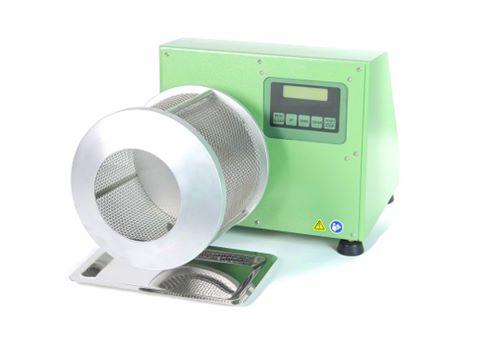

Friability Tester - Model 42141
