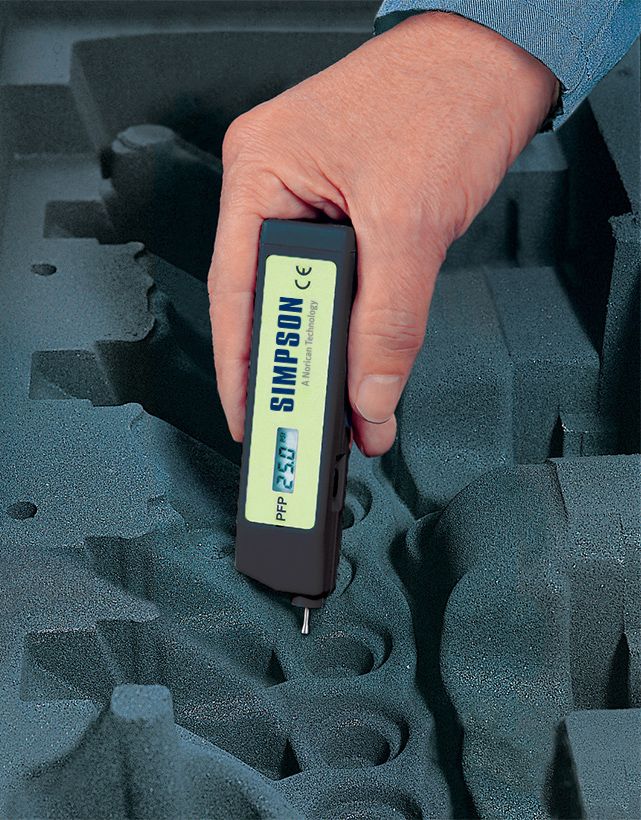

Mold Strength Tester

Model PFP

Specifications

Part number

Metric: #592-801-102

Sand casting process

Clay Bonded Sand

Specifications

Measuring Ranges: 0.2-31 N/cm2 0.2-45 psi
Resolution: 1 N (force)
Reproducibility: +/1 1 digit
Power Requirements: Battery
Length: 0.88" / 22mm
Width: 1.38" / 30mm
Height: 5" / 130mm

This electronic mold strength tester ensures a practically movement-free force measurement by means of an oscillating crystal-controlled sensor.

The measured force, which corresponds to the penetration resistance, indicates the strength rate. The tester comprises a digital display unit, a multifunction push-button switch and two 1,5 V batteries. It measures and stores the maximum value in N/cm2 or PSI, automatically calibrates the zero point, retains the value last measured in storage, and then turns off automatically.

Key Advantages:

Utilizes a crystal oscillator sensing element which allows for measured force to correspond to actual mold penetration resistance.
Eliminates traditional sources of error such as non-linearity of springs.
Measures in both N/cm² and PSI.
Very light weight; device only weighs only 125 g (0.28 lbs.).
Watch "How to videos"

Additional downloads

Electonic Mould Strength Tester Type PFP

Manual

Get the guidance you need to optimize your sand testing process with ease and confidence.

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Related Content

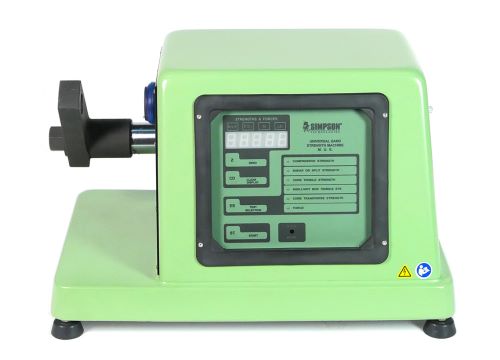

Electronic Universal Sand Strength Machine - Model 42104

Determines the strength properties of clay and/or chemically bonded foundry sand specimens.

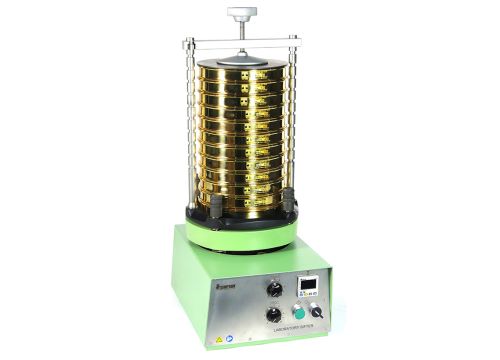

Laboratory Sifter - Model 42106

Used to determine the fineness of foundry sands.

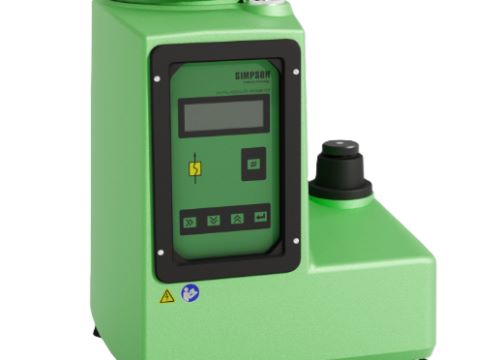

Digital Absolute Permmeter - Model 42105

A fully automatic system which measures the permeability of porous sand masses, both in compacted and loose states.

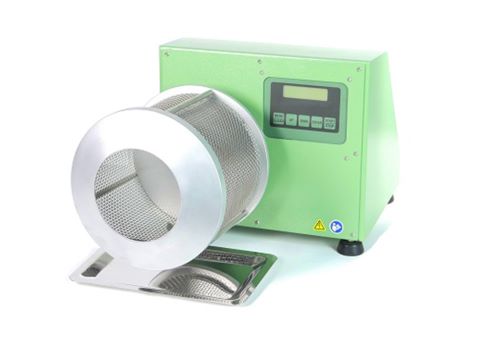

Friability Tester - Model 42141
