Analytical Balance
Model 42137
Part numbers
AFS:
- Part # 0042137-1-1A
- Part # 0042137-1-2A
- Part # 0042137-2-1A
- Part # 0042137-2-2A
Part numbers
Metric:
- Part # 0042137-1-1A
- Part # 0042137-1-2A
- Part # 0042137-2-1A
- Part # 0042137-2-2A
Sand casting process
- Clay Bonded Sand
- Cold Box
- Core Oil
- Hotbox/Warmbox
- Nobake/Air-set
- Shell/Croning

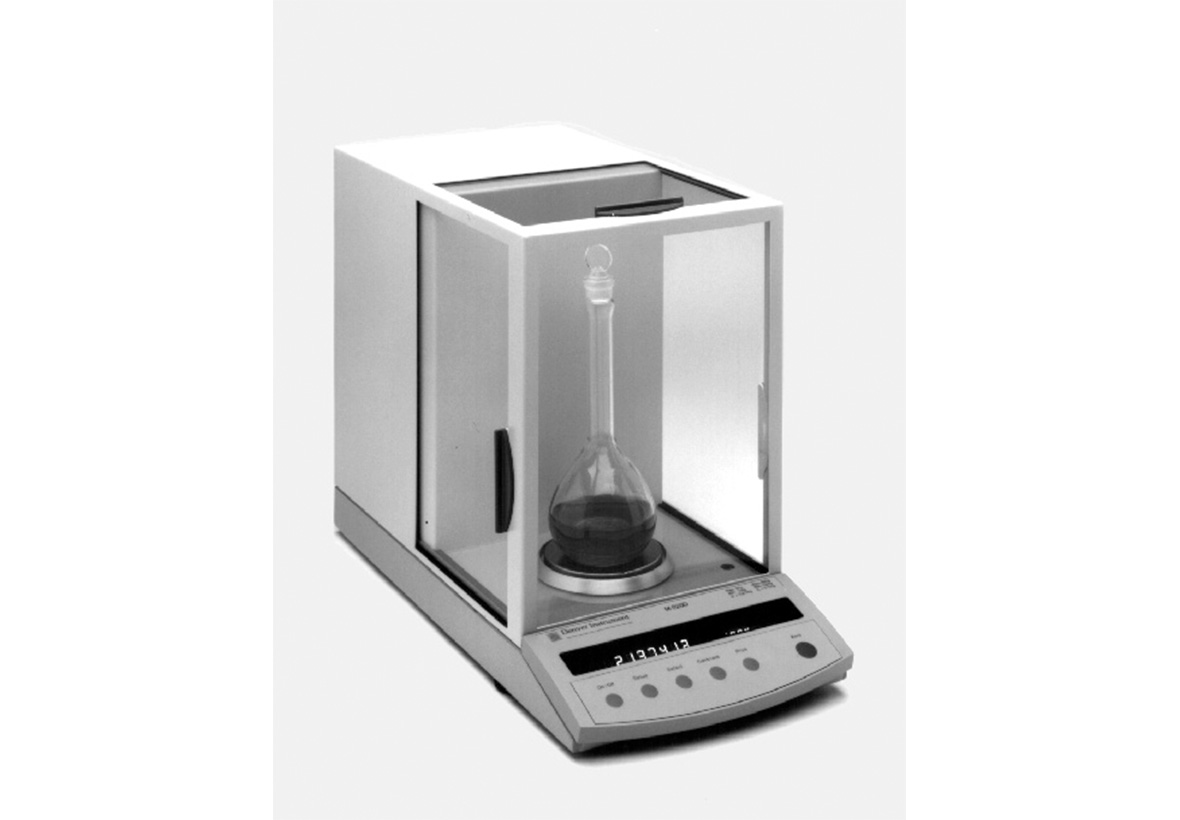

The Analytical Balance is a high precision weighing instrument necessary for several standard AFS or DIN tests requiring high accuracy measurements.
These balances feature an oversized chamber, full color graphic display and rugged construction.
In addition, the balance incorporates a stability detection system coupled with a quick response time, ensuring efficient use of laboratory time. Each balance includes a sealed keypad, overload and shock protection and fully automatic internal calibration.
Specifications
Part Number: 0042137-1-1A
Capacity: 230g
Pan Size: 90mm (3.5")
Readability: 0.1mg
Power Requirements: 100-240 Volts, 50/60 Hz
Stabilization Time: 3 seconds
Length: 9.1" / 230mm
Width: 13.8" / 350mm
Height: 15.5" / 393mm
Weight: 22lb / 9.6kg
Part Number: 0042137-1-2A
Capacity: 230g
Pan Size: 90mm (3.5")
Readability: 0.1mg
Power Requirements: 100-240 Volts, 50/60 Hz
Stabilization Time: 4 seconds
Length: 9.1" / 230mm
Width: 13.8" / 350mm
Height: 15.5" / 393mm
Weight: 22lb / 9.6kg
Part Number: 0042137-2-1A
Capacity: 230g
Pan Size: 90mm (3.5")
Readability: 1mg
Power Requirements: 100-240 Volts, 50/60 Hz
Stabilization Time: 5 seconds
Length: 9.1" / 230mm
Width: 13.8" / 350mm
Height: 15.5" / 393mm
Weight: 22lb / 9.6kg
Part Number: 0042137-2-2A
Capacity: 230g
Pan Size: 90mm (3.5")
Readability: 1mg
Power Requirements: 100-240 Volts, 50/60 Hz
Stabilization Time: 6 seconds
Length: 9.1" / 230mm
Width: 13.8" / 350mm
Height: 15.5" / 393mm
Weight: 22lb / 9.6kg
