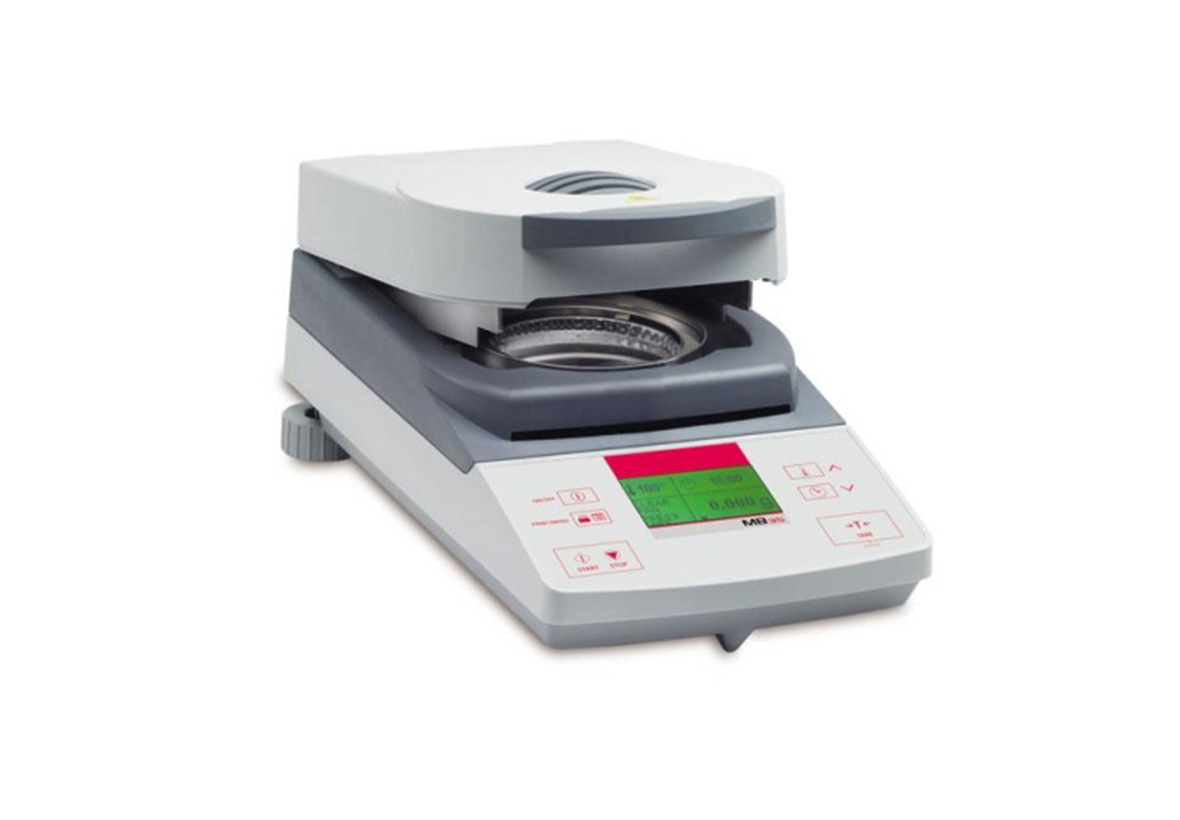

Moisture Analyzer

Model 42130

Part numbers

AFS:

#0042130-90-1B
#0042130-90-2B

Metric:

#0042130-90-1B
#0042130-90-2B

Sand casting process

Clay Bonded Sand
Cold Box
Core Oil
Hotbox/Warmbox
Nobake/Air-set
Shell/Croning

Replacement parts

55 Drying Pans Part Number: 0042130A
Replacement Bulbs Part Number: 0042130C

*Note: Replacement bulbs are not considered a warrantee item.

Part Number: 0042130-90-1B

Capacity: 90g
Internal Calibration: n/a
Readability: 0.05%
Power Requirements: 240 Volts, 50/60 Hz
Length: 6.5" / 170mm
Width: 5" / 130mm
Height: 11" / 280mm
Weight: 9lb / 4kg

Part Number: 0042130-90-2B

The Moisture Analyzer is used to determine the moisture content of green sand and other raw materials used within the foundry.

Depending upon the unit, at least 25g up to 90g of sand are placed on the drying pan and heated. The analyzer features Halogen drying technology to quickly obtain the moisture content of the material which is automatically calculated and shown on the backlit digital display. The Model 42130-IA & 42130-IC offer an advanced digital display with many different drying programs and multiple languages. The Model 42130-ID is a high-capacity unit with just the essential settings and display for the average user. Each analyzer is supplied with 50 Drying Pans.
