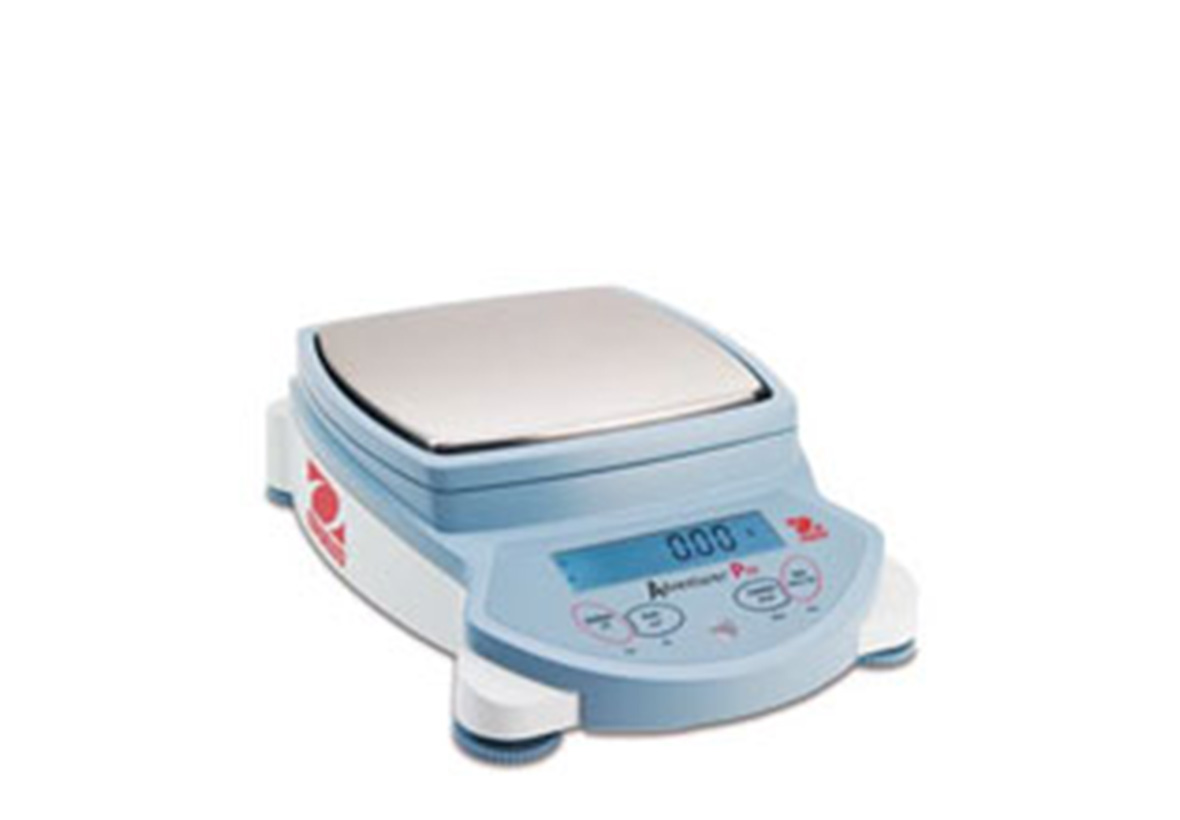

Digital Balance

Model 42118

The Digital Balances, Models 42118, offer a sand laboratory the speed and accuracy required to perform all weighing applications.

All balances feature solid construction, a high contrast display and a large-scale surface. These balances also feature an automatic tare key, a quick stabilization time of 2-3 seconds and an automatic internal calibration feature. The Model 42118-04 offers features such as a backlit LCD, internal self-calibration and increased readability. The Model 42118-4 features increased readability and an easy-to-use graphical display with data output capabilities and an automatic temperature variable internal calibration.

Part numbers

AFS:

#0042118-12-1B
#0042118-12-2B
#0042118-4-1A
#0042118-4-2A

Part numbers

Metric:

#0042118-12-1B
#0042118-12-2B
#0042118-4-1A
#0042118-4-2A

Sand casting process

Clay Bonded Sand
Cold Box
Core Oil
Hotbox/Warmbox
Nobake/Air-set
Shell/Croning

Specifications

Part Number: 0042118-12-1B

Capacity: 1,200g
Internal Calibration: n/a
Pan Size: 140mm x 170mm(5.5"x6.7")
Repeatability: ±0.02g
Readability: .01g
Power Requirements: 110 Volts, 60 Hz
Length: 8.8" / 224mm
Width: 8" / 202mm
Height: 2.1" / 54mm
Weight: 2.2lb / 1kg

Part Number: 0042118-12-2B

Capacity: 7 bar (100 psi)
Internal Calibration: n/a
Pan Size: 140mm x 170mm(5.5"x6.7")
Repeatability: ±0.02g
Readability: .01g
Power Requirements: 240 Volts, 50 Hz
Length: 8.8" / 224mm
Width: 8" / 202mm
Height: 2.1" / 54mm
Weight: 2.2lb / 1kg

Part Number: 0042118-4-1A

Capacity: 7 bar (100 psi)
Internal Calibration: n/a
Pan Size: 190mm x 200mm(7.5"x7.9"
Repeatability: ±0.01g
Readability: .01g
Power Requirements: 110 Volts, 60 Hz
Length: 15.5" / 393mm
Width: 9.1" / 230mm
Height: 3.9" / 98mm
Weight: 9.5lb / 4.3kg

Part Number: 0042118-4-2A

Capacity: 7 bar (100 psi)
Internal Calibration: n/a
Pan Size: 190mm x 200mm(7.5"x7.9"
Repeatability: ±0.01g
Readability: .01g
Power Requirements: 240 Volts, 50 Hz
Length: 15.5" / 393mm
Width: 9.1" / 230mm
Height: 3.9" / 98mm
Weight: 9.5lb / 4.3kg

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Related Content

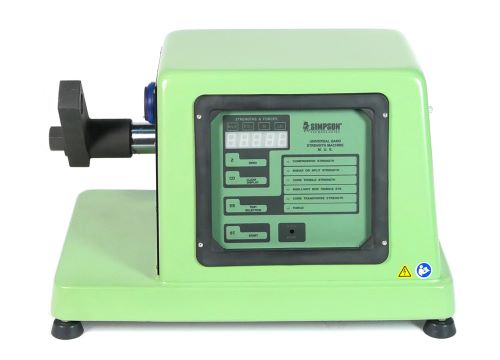

Electronic Universal Sand Strength Machine - Model 42104

Determines the strength properties of clay and/or chemically bonded foundry sand specimens.

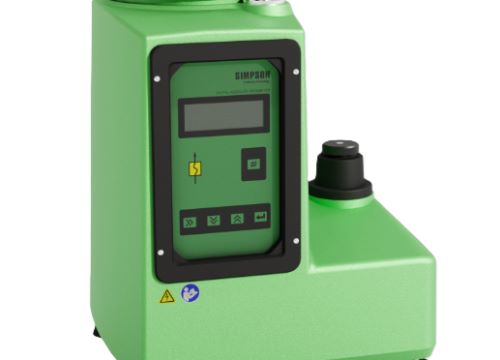

Digital Absolute Permmeter - Model 42105

A fully automatic system which measures the permeability of porous sand masses, both in compacted and loose states.

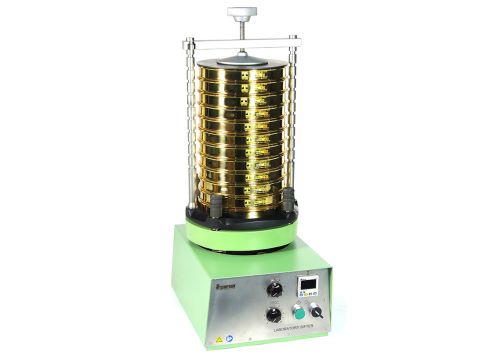

Laboratory Sifter - Model 42106

Used to determine the fineness of foundry sands.

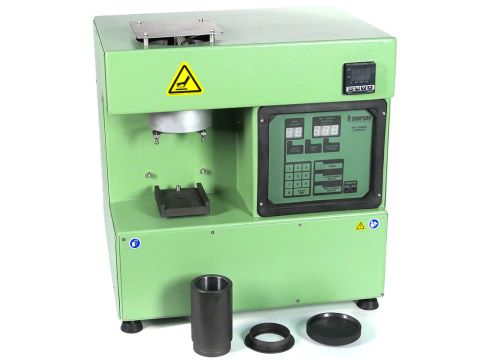

Wet Tensile Tester - Model 42112
