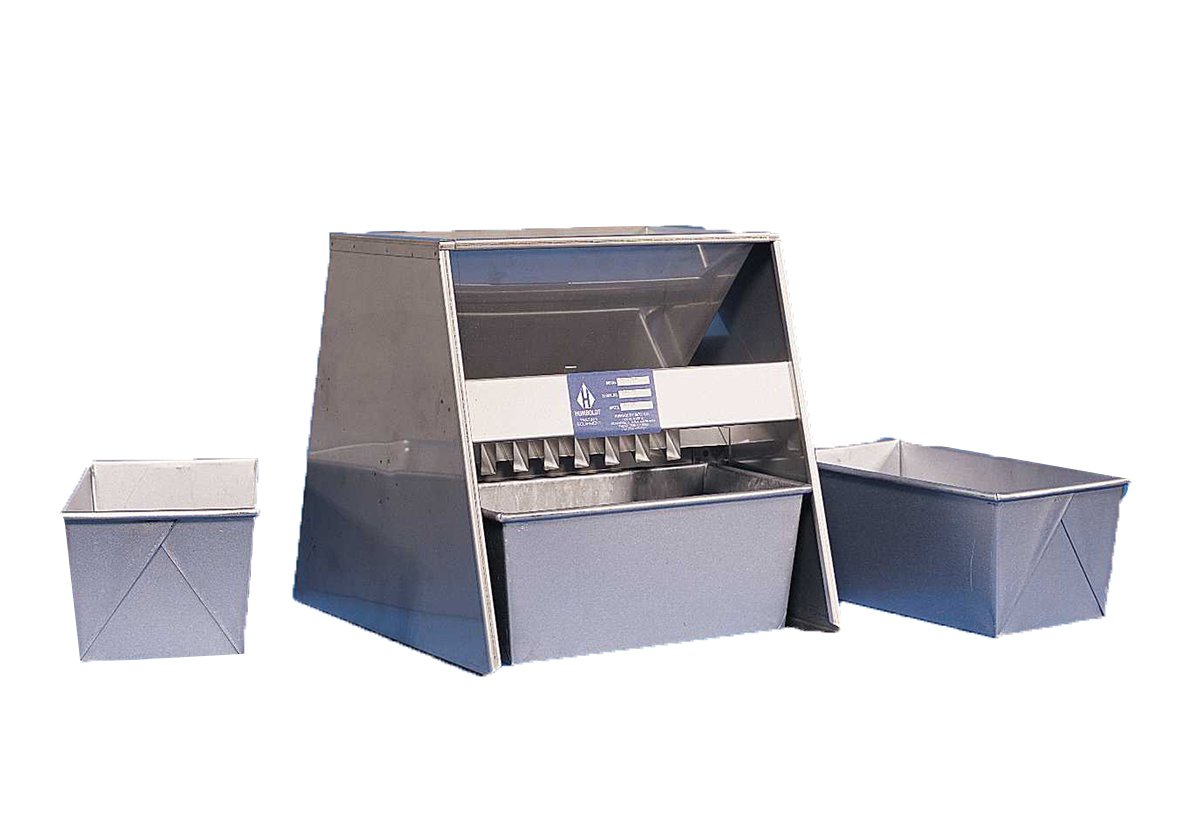

1/2" Riffle Splitter
Model 42106D
Part numbers
AFS: #0042106D
Metric: #0042106D
Sand casting process
- Clay Bonded Sand
- Cold Box
- Core Oil
- Hotbox/Warmbox
- Nobake/Air-set
- Shell/Croning
Specifications
Length: 15" / 381mm
Width: 11.5" / 292mm
Height: 14" / 356mm
Weight: 17lb / 7.7kg
The ½” Riffle Splitter accessory is used to prepare a representative sample of unbonded foundry sands for sieve analysis testing.

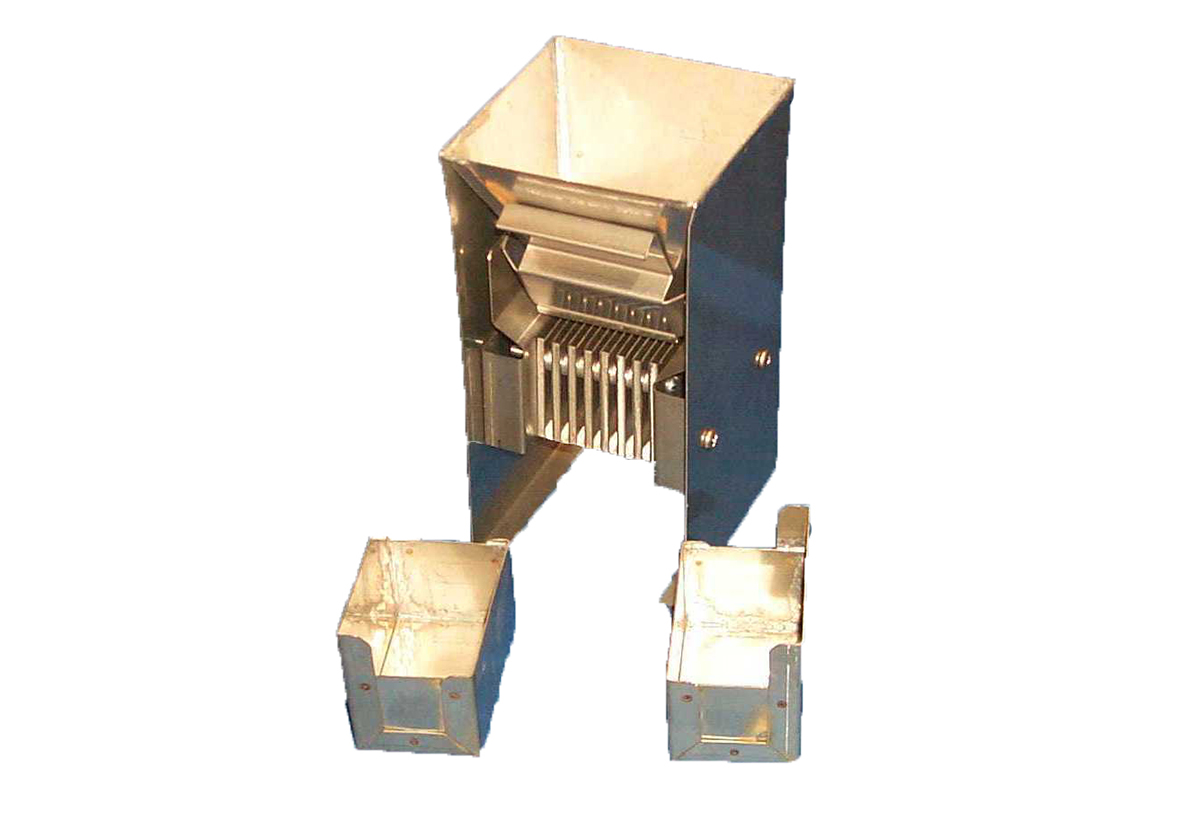

Fourteen 1/2” chutes divide the sand accurately in half to provide representative sand samples down to 125 grams. This 1/8” Microsplitter (Model 42106B) is needed in conjunction with the 1/2” Riffle Splitter to accurately obtain representative size sand sample small enough for sieve analysis testing.

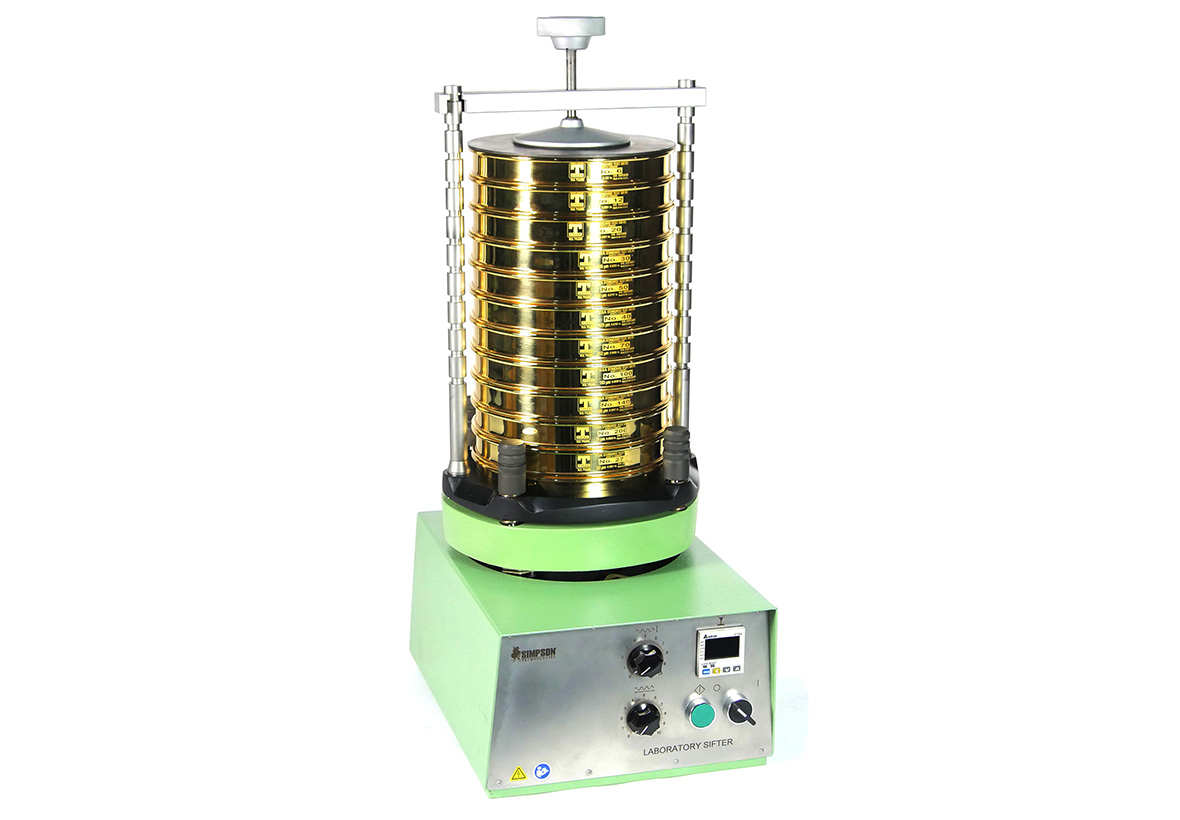

Used with: Laboratory Sifter (Model 42106) and 1/8″ Microsplitter (Model 42106B)
