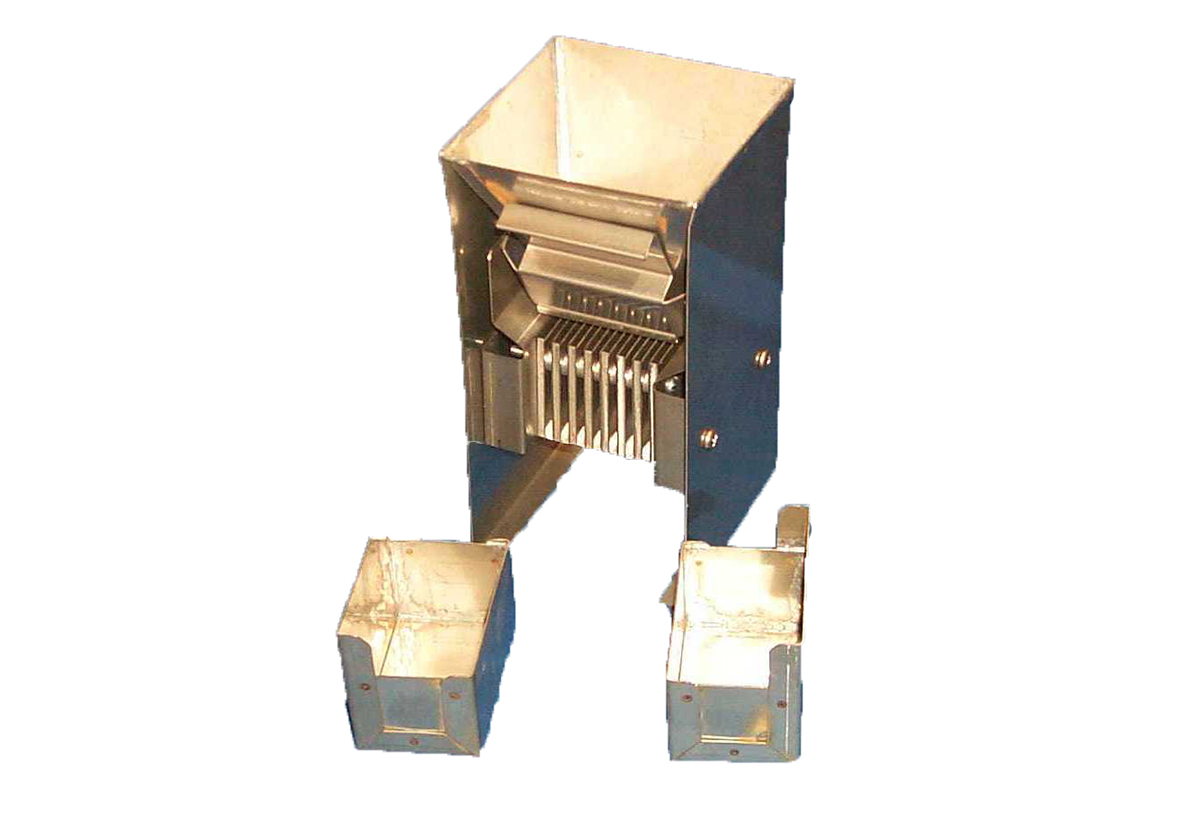

1/8" Microsplitter
Model 42106B
Part numbers
AFS: #0042106B
Metric: #0042106B
Sand casting process
- Clay Bonded Sand
- Cold Box
- Core Oil
- Hotbox/Warmbox
- Nobake/Air-set
- Shell/Croning
Specifications
Length: 4.5" / 114mm
Width: 4.5" / 114mm
Height: 8" / 203mm
Weight: 4lb / 1.8kg
The 1/8” Microsplitter is used to prepare a representative sample of unbonded foundry sands for sieve analysis testing.
Sixteen 1/8” chutes obtain representative sand samples of 125 grams or smaller. The sand poured down the splitter is divided in half with each pass. This reduction technique will yield a representative size sample of the sand for testing.

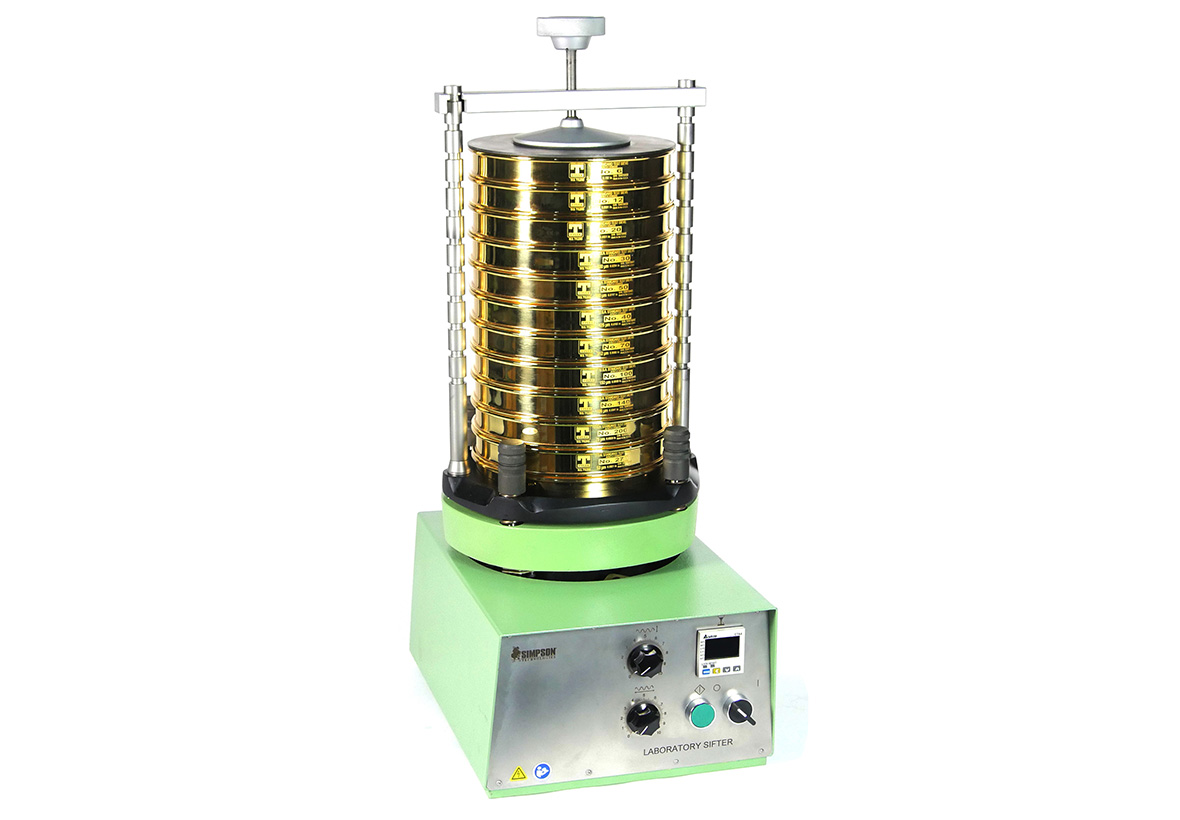

Used with: Laboratory Sifter (Model 42106)
