Sand Testing Sieves

Model 42106A

Part numbers

AFS: #0042106A
Metric: #0042106A-M

Sand casting process

Clay Bonded Sand
Cold Box
Core Oil
Hotbox/Warmbox
Nobake/Air-set
Shell/Croning

Specifications

Diameter: 8" / 203mm
Width: 13" / 330mm
Height: 12lb / 5.5kg

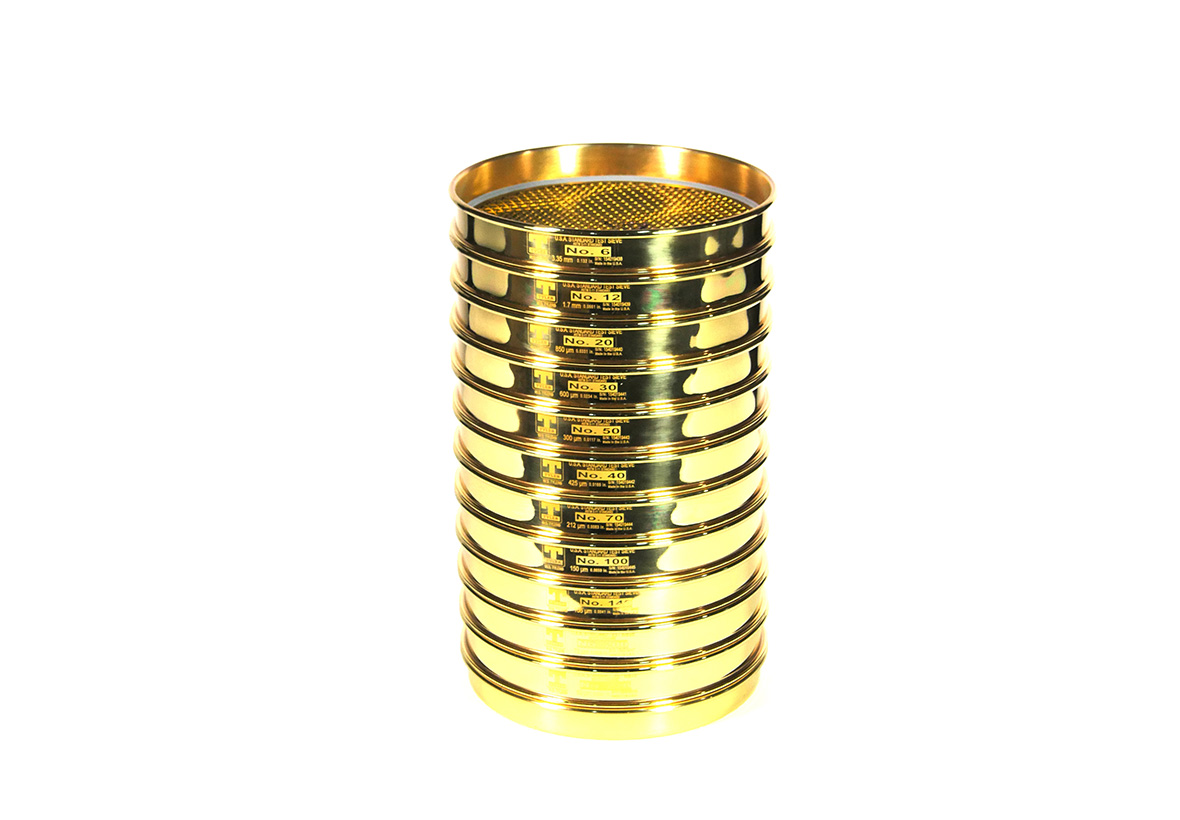

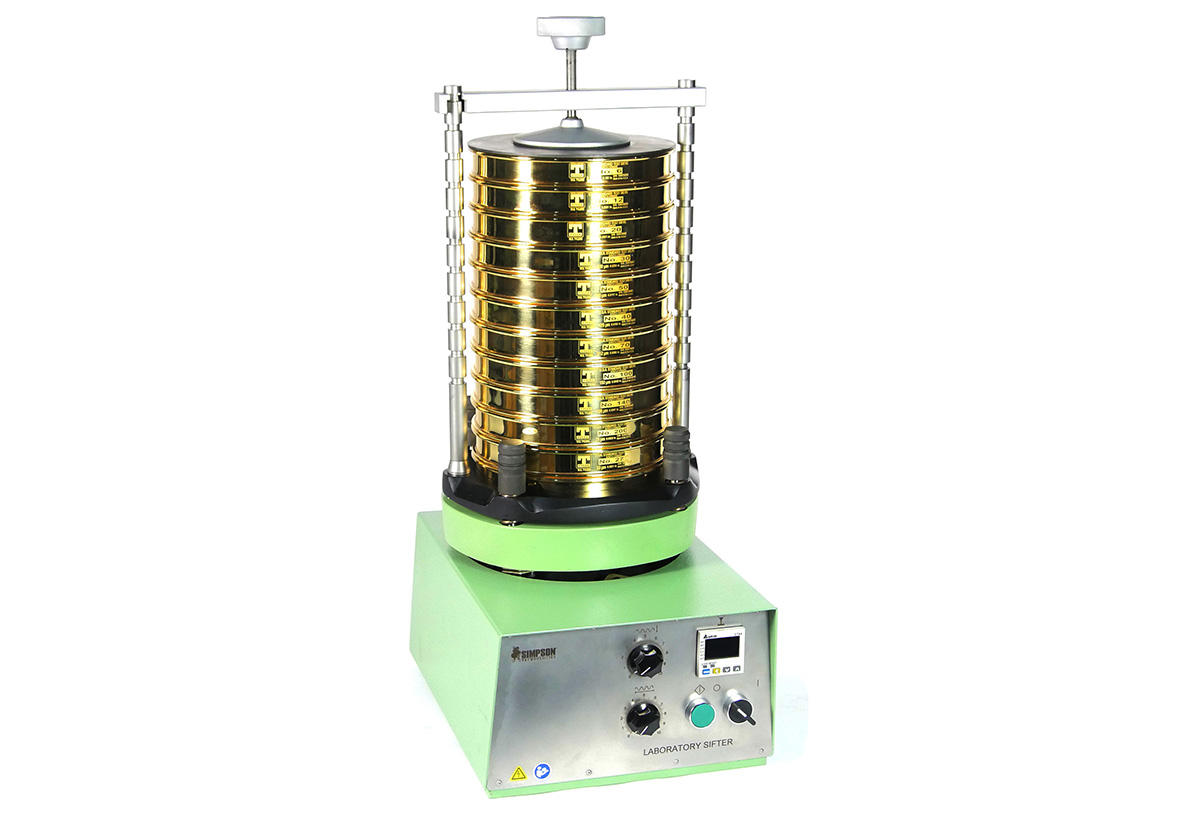

The Sand Testing Sieves are used with the Laboratory Sifter, Model No. 42106 for determining the AFS grain fineness number and for the distribution of molding and core sands.

Included are a nest of AFS sand testing sieves consisting of U.S.A. sieve numbers 6, 12, 20, 30, 40, 50, 70, 100, 140, 200, 270 and a pan. For the nest of metric (DIN standard) sand testing sieves, the mesh sizes are 1.4mm, 1.0mm, 0.71mm, 0.5mm, 0.355mm, 0.25mm, 0.18mm, 0.125mm, 0.09mm, 0.063mm and pan. Other sieve seizes and configurations are available upon request.
