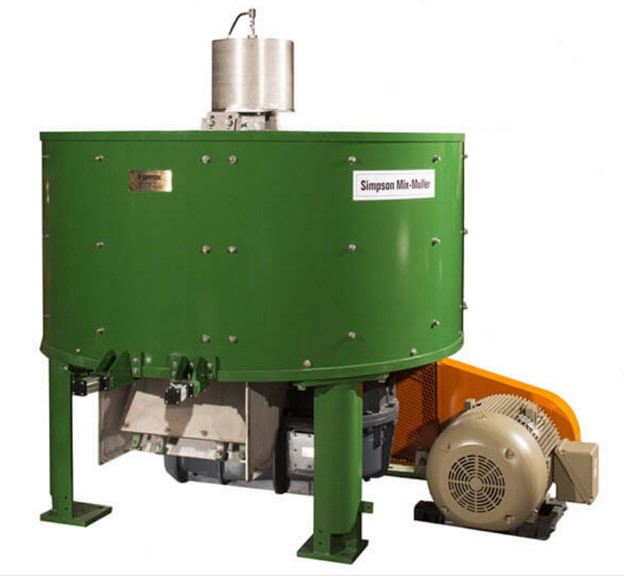

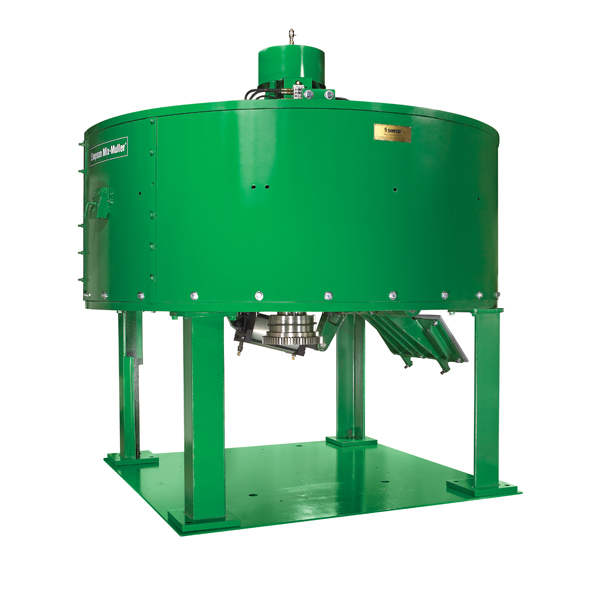

Simpson Mix-Muller® High-Intensity Batch Mixer

High-Intensity Batch Mixer

In small to medium-sized sand systems or difficult mixing applications, versatility is critical. The SIMPSON MIX-MULLER® has been carefully designed and proportioned to achieve maximum performance, versatility and energy efficiency in these types of applications.

Let’s Build the Right Solution for Your Foundry

About Us | Norican

Description

Medium-speed, high-intensity, muller-type mixer for batch operation.

Available in Imperial, sizes vary by region

Muller Specifications - Imperial

Muller Specifications - Metric

Application

Small- to medium-sized sand preparation systems, and the most difficult mixing applications.

Features

  • Adaptive tooling
  • Energy efficiency
  • Larger batch and longer available cycle
  • Rugged design

Versatility Makes You More Competitive

Designed to utilize larger batch sizes and longer cycle times to provide better consistency and control. Larger batch sizes provide for better averaging of multiple molds and other variations in return sand. Longer cycle times provide for better control. Adaptive tooling provides for flexibility to adjust to variations in batch composition and property development.

Simpson Mix-Muller | SIMPSON
Simpson Mix-Muller | SIMPSON

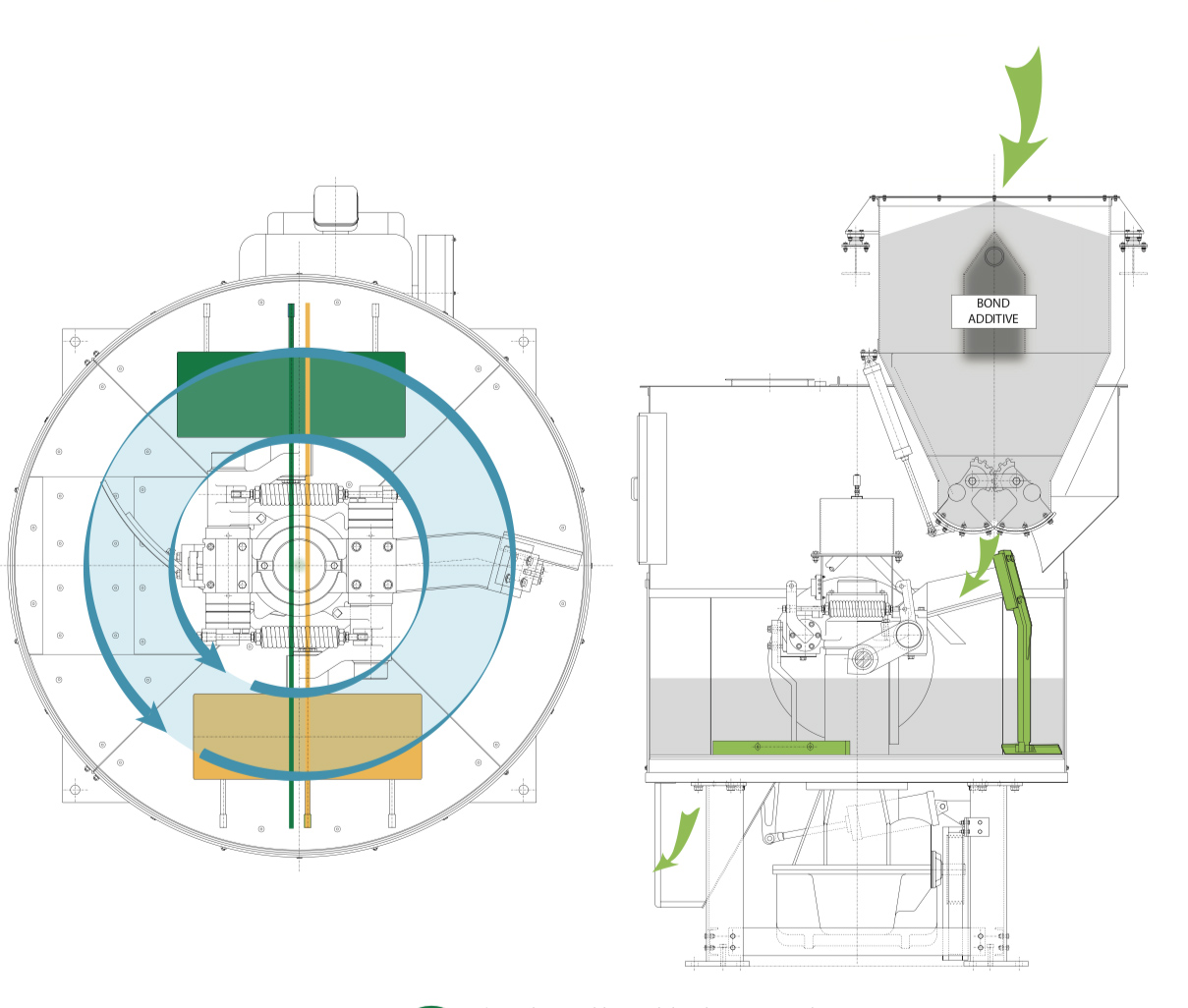

Adaptive Tooling

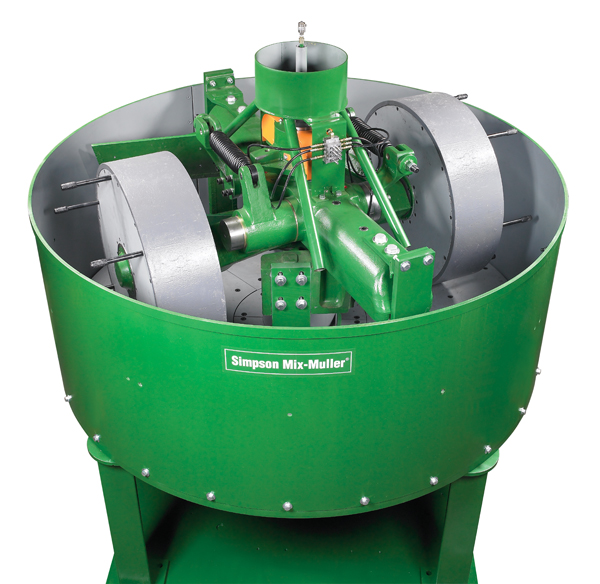

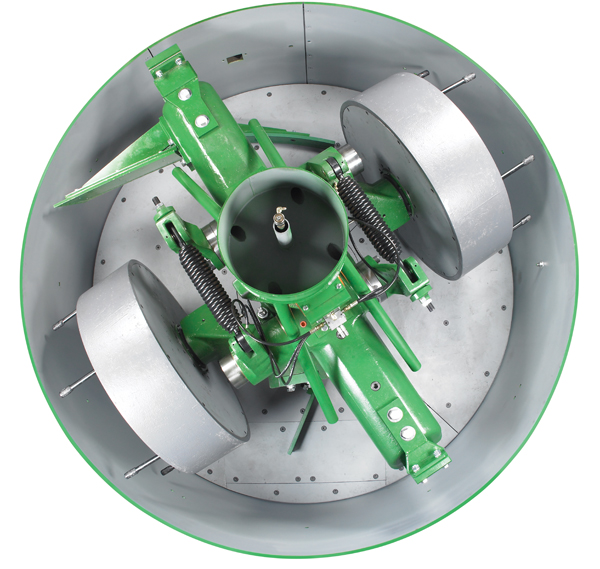

Muller wheels are mounted on independent, spring-loaded suspensions. As the molding sand mixture increases in volume and strength, the mullers react by raising and increasing the mulling pressure. This is a versatile and inexpensive source of mixing energy which provides the kneading and compression action of mulling.

Wide-faced mullers provide compression and shear.

The muller wheels are set slightly off their true radius so that as they revolve, they skid to provide a shearing action. The inside edges of the wheels travel a shorter path than the outside of the wheels which causes a spatulating action across the face of the wheels.

Interchangeable, modular plows armored with tungsten carbide provide intensive blending and minimize maintenance costs.

Simpson Mix-Muller | SIMPSON
Simpson Mix-Muller | SIMPSON

Gain a Greater Understanding

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Need More Information

Related Content

Simpson Mix-Muller | Spare Parts | SIMPSON

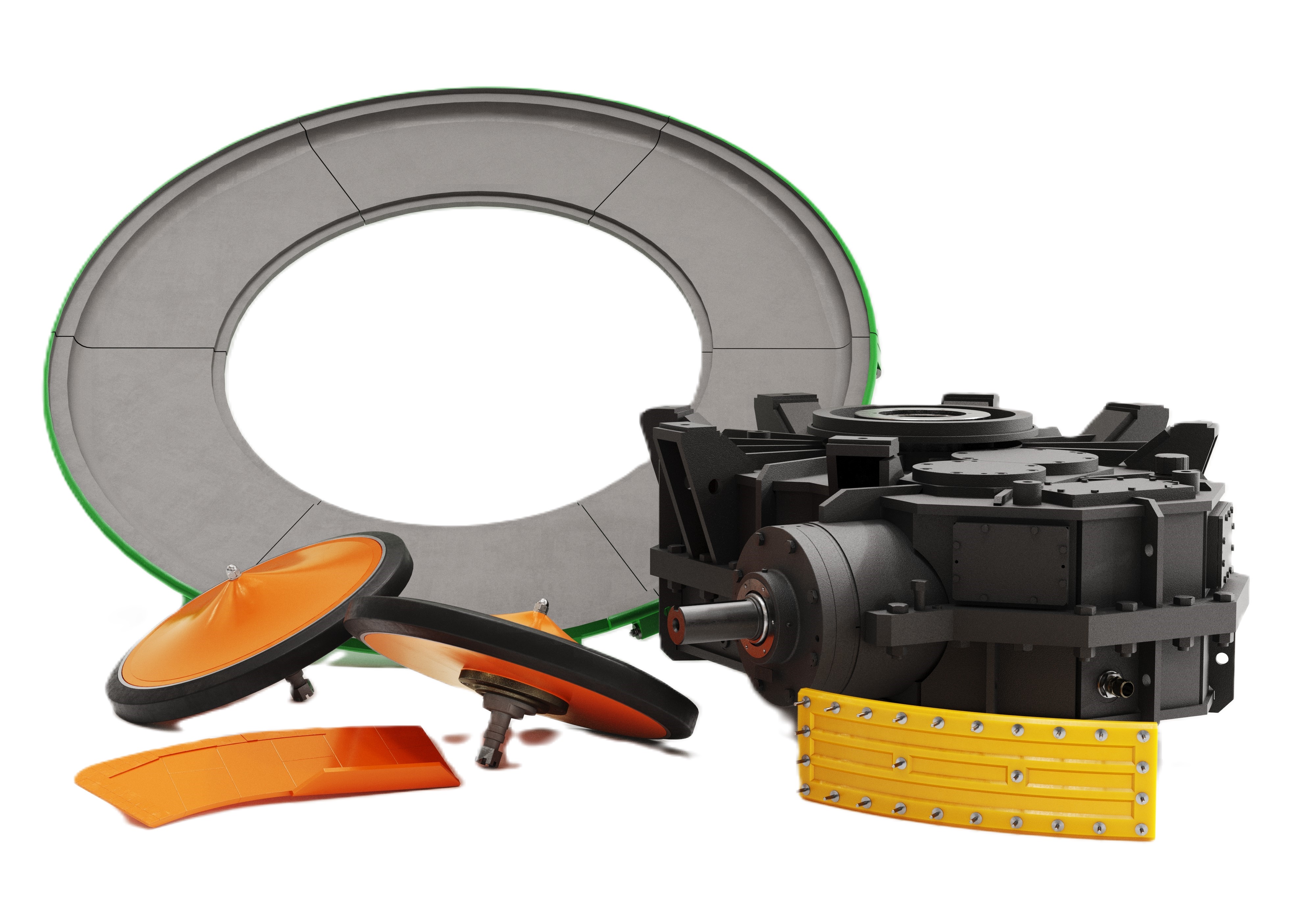

Spare Parts

Engineered and designed to provide maximum performance and efficiency. The right specifications made from the original designs.

Simpson Mix-Muller | Service | SIMPSON

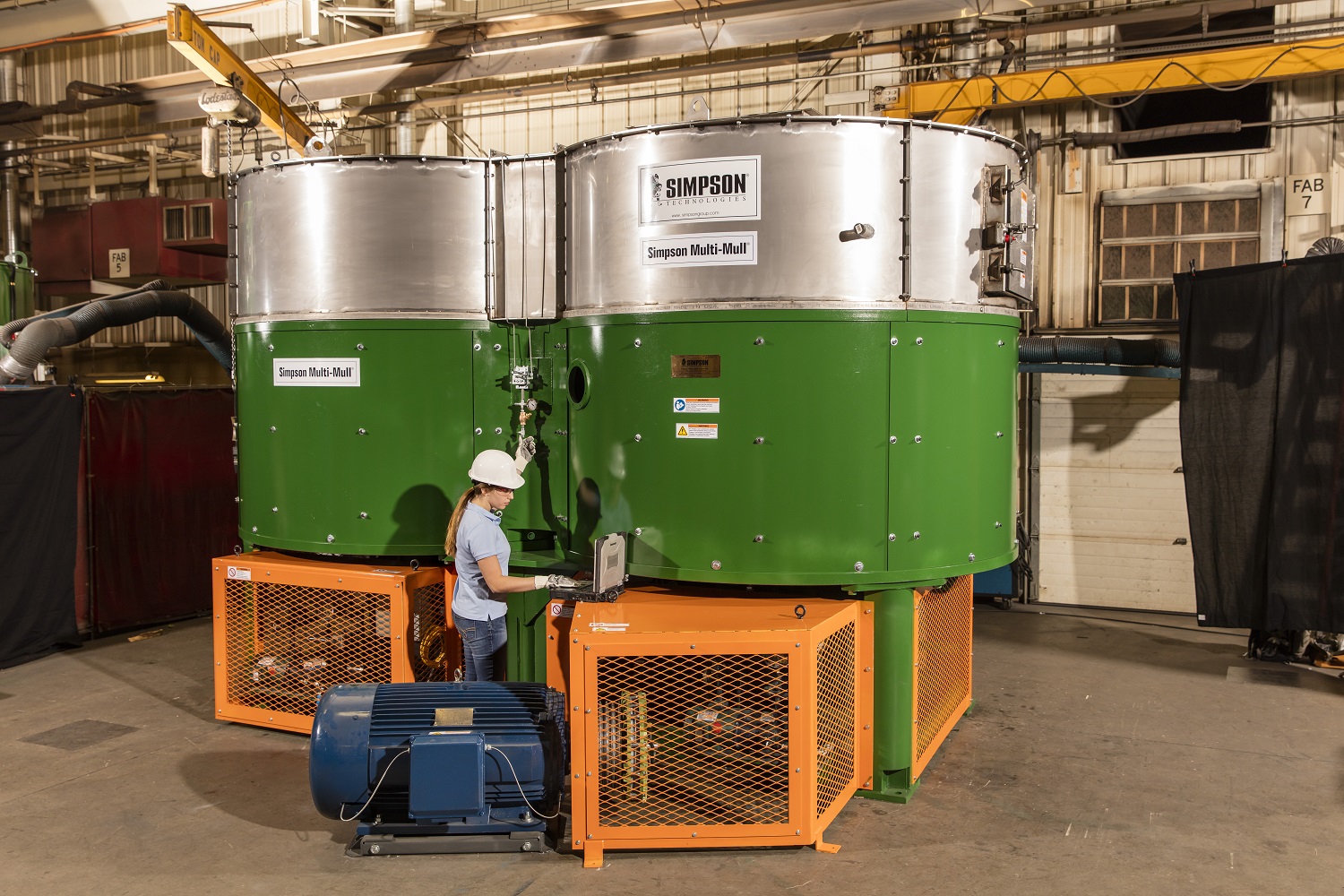

Service
