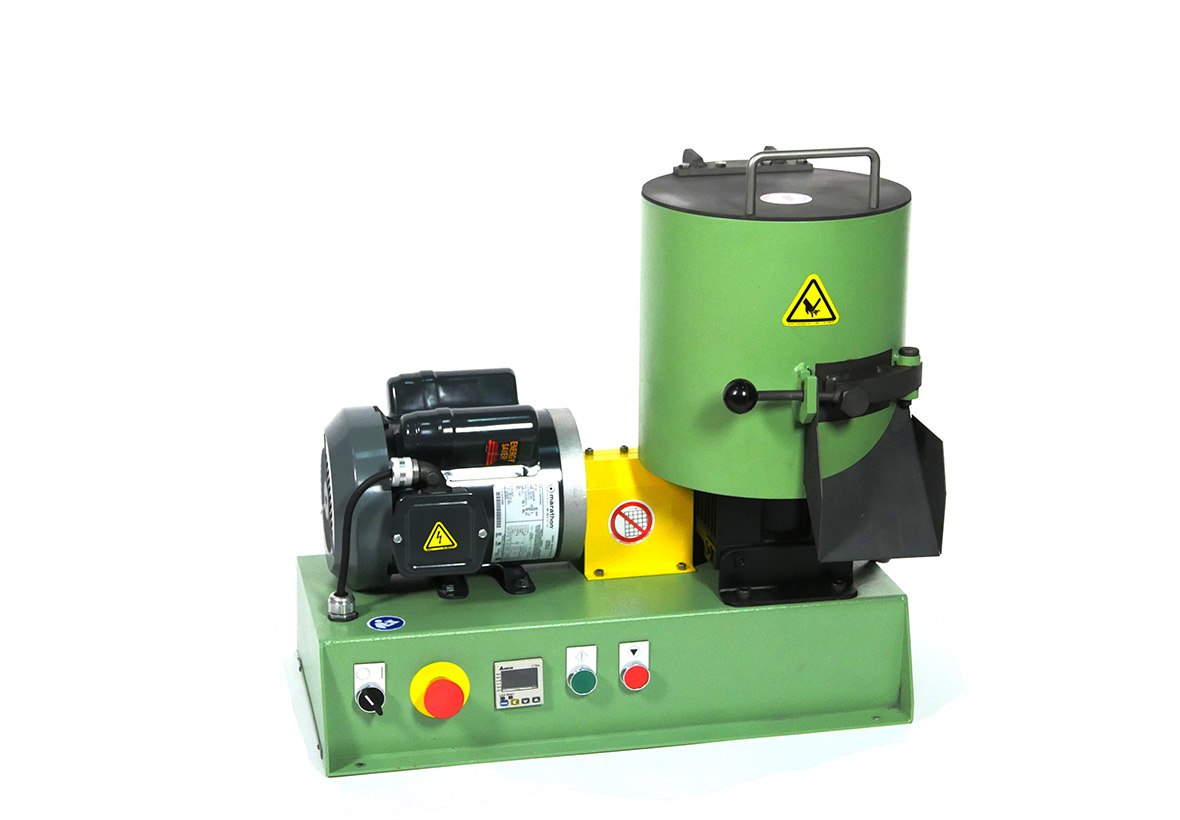

Laboratory Core Sand Mixer

Model 42111

The Laboratory Core Sand Mixer is designed to mix liquid binders with sand that is common to all chemically bonded sand mixtures.

The mixer features an “S” shaped mixing blade with a vertical shaft that completely mixes the complete sand mass.

The mixer has a mixing capacity of approximately 4 kg. (9 lbs.) or 3.7 liters (0.13 cu.ft.) of silica sand or similar chemicals and operates with a 0.559kw (0.75 HP) motor.

Part numbers

AFS:

#0042111-ASM
#0042111-2-ASM

Metric:

#0042111-ASM
#0042111-2-ASM

Sand casting process

Cold Box
Core Oil
Hotbox/Warmbox
Nobake/Air-set
Shell/Croning

Part Number: 0042111-ASM

Power Requirements: 120 Volts, 60Hz
Length: 20.5" / 521mm
Width: 10.75" / 273mm
Height: 12.75" / 324mm
Weight: 110lb / 50kg

Part Number: 0042111-2-ASM

Power Requirements: 230 Volts, 50Hz
Length: 20.5" / 521mm
Width: 10.75" / 273mm
Height: 12.75" / 324mm
Weight: 110lb / 50kg
