Understanding and Controlling Hot Sand in Green Sand Molding
Understanding Hot Sand
Hot molding sand refers to high-temperature sand that poses difficulties in sand preparation, molding, and casting quality. It requires additional raw materials to achieve usable molding properties. Studies have shown that sand temperatures above 120°F (49°C) result in a loss of physical sand properties, leading to inconsistent mulling and control problems. Hot sand can cause various defects, including sand inclusions, rough surface finish, metal penetration, swells, erosion, gas-related pinholes, and broken molds.
Hot sand is a significant challenge in green sand molding, impacting casting quality and production. It is important for foundries to understand what constitutes hot sand, its effects on molding and quality, and the techniques used to control and eliminate it. By exploring the causes and consequences of hot sand, as well as effective cooling methods, foundries can improve their sand preparation processes, reduce casting defects, and enhance overall productivity.
Effects of Hot Sand
Hot sand affects every aspect of a green sand molding operation, leading to higher scrap rates, increased bentonite consumption, and a loss of system control. Sand-related defects, such as sand inclusions and surface roughness, are strongly correlated with excessive sand temperature. Hot sand also disrupts sand system operation, making accurate moisture additions and compactibility control challenging. Moisture condensation from hot sand onto cold surfaces can cause sand to stick to patterns, decreasing sand capacity due to build up on the silo walls, and casting defects. Inconsistent sand properties and uncontrollable sand drying further complicate the molding process.
Controlling Hot Sand

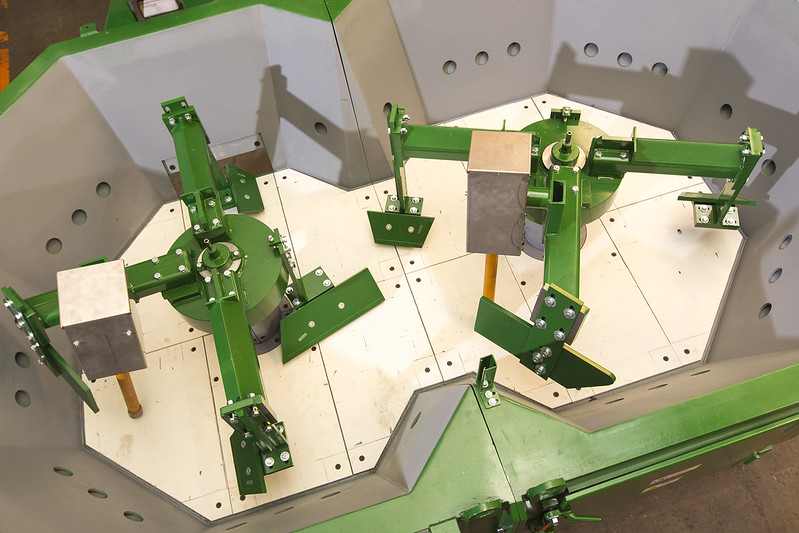

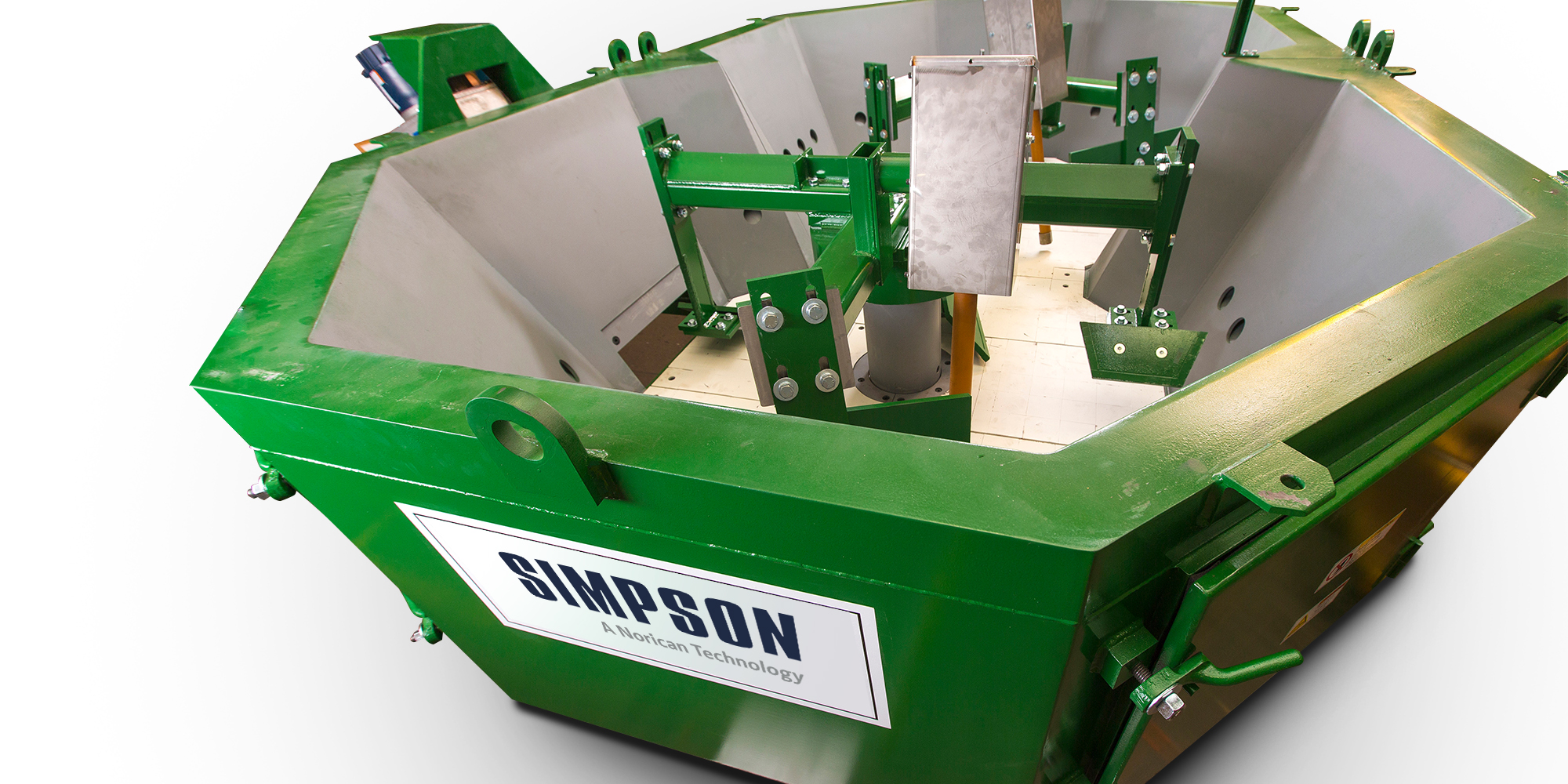

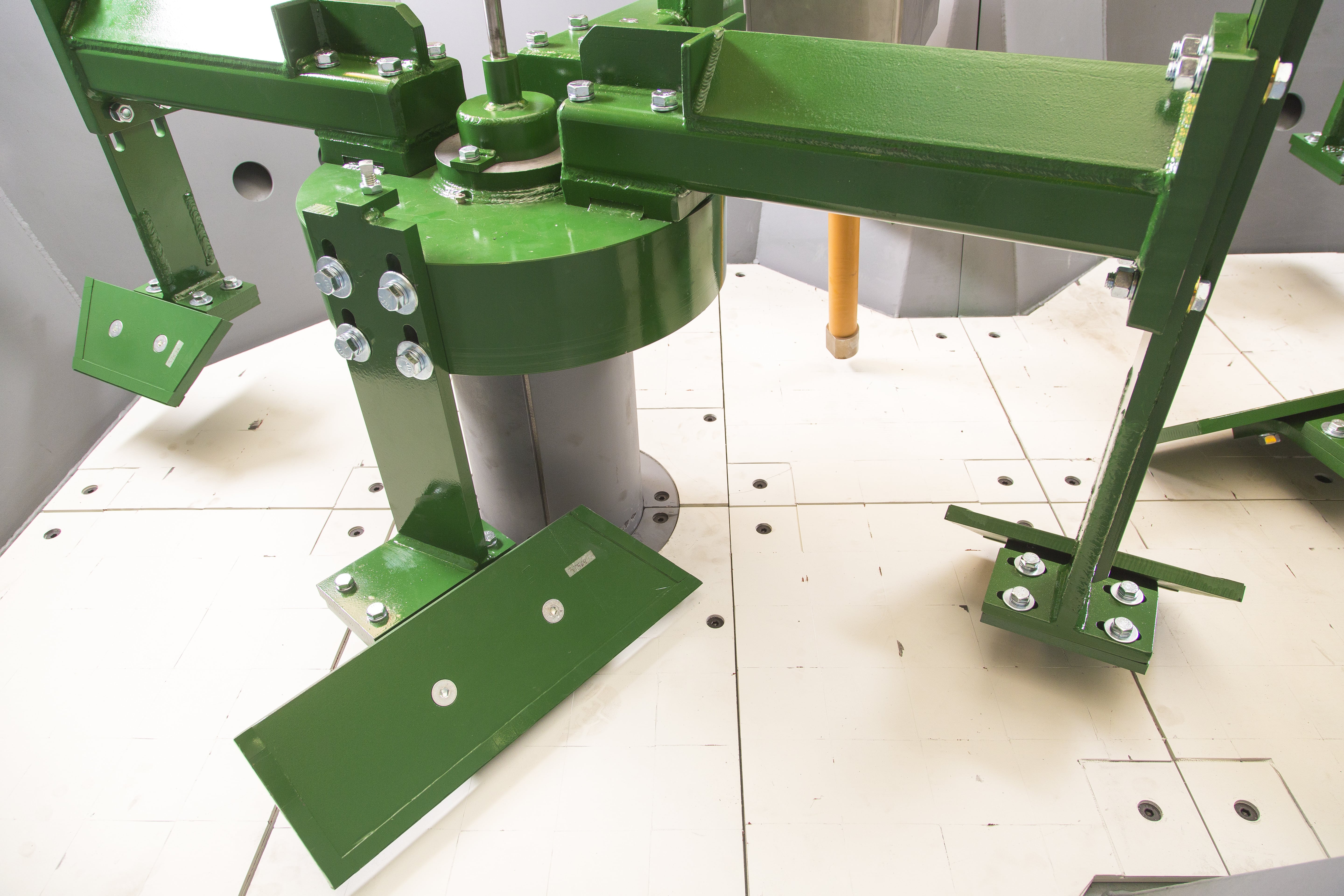

There are three ways to control hot sand. The first is to increase overall sand system capacity, which only slightly lowers sand temperature by allowing more cooling time. The second is to lower the metal-to-sand ratio, but since foundries aim to maximize output per mold, this is not ideal. Effective control requires mechanical cooling. A well-designed sand cooling system maintains sand consistency by blending temperature swings and inconsistencies into a uniform mass. Simply adding water is insufficient—water must contact all sand grains long enough, and steam must be removed.
Retention time in the cooling vessel is vital. Unsaturated air is needed for evaporation-based systems, and passing it through the sand mass is most effective. Controlling water quantity and achieving discharge moisture near molding levels is crucial. Cooling systems may also include bentonite addition and back blending to improve efficiency.
Benefits of Sand Cooling
Implementing a sand cooling system offers numerous benefits. It reduces sand-related scrap rates, improves sand consistency, and enhances productivity. By maintaining sand temperature and moisture within the desired range, casting defects such as sand inclusions, swells, and erosion can be significantly reduced. Sand cooling systems also increase muller efficiency, reduce bentonite usage, and improve overall molding line efficiency. The ability to cool and blend return sand prior to the muller ensures a more consistent molding sand, leading to higher-quality castings.
Conclusion
Controlling hot sand is crucial for achieving consistency and defect-free components in green sand molding. By understanding the causes and consequences of hot sand and implementing effective cooling techniques, foundries can significantly improve their sand preparation processes. Sand cooling systems play a vital role in maintaining sand consistency, reducing scrap rates, and improving molding line efficiency. With proper control and elimination of hot sand, foundries can achieve higher-quality castings and optimize their operations.
