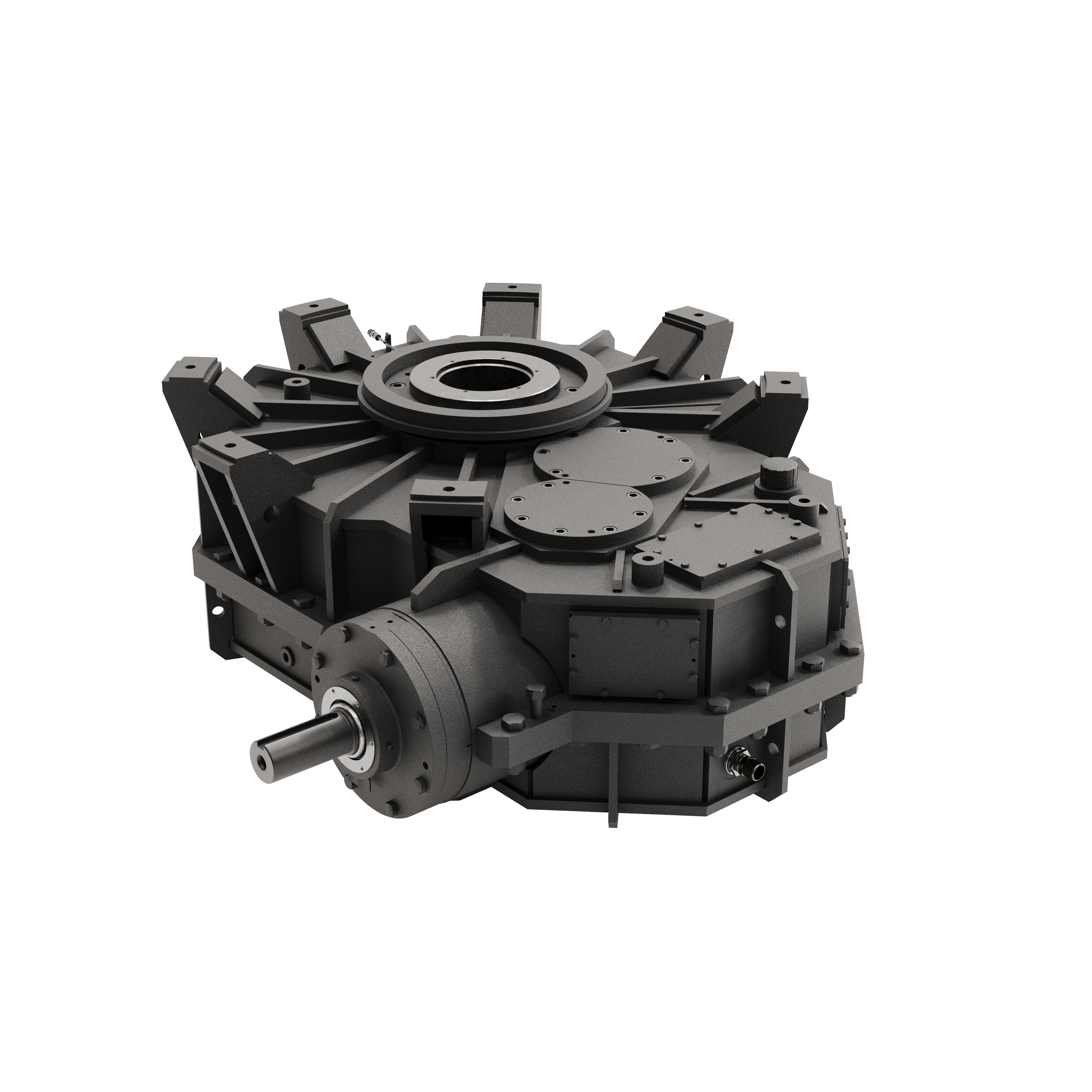

HD Max Gearbox

Designed to provide maximum performance and efficiency while offering a longer service life at an affordable/economical price for the Simpson Speedmullor.

Available for select Simpson Speedmullors

85B Speedmullor

AFFECTED PART: Q-61522

REPLACEMENT PART: Q-220915

100B-200 Speedmullor

AFFECTED PART: Q-64756

REPLACEMENT PART: Q-218740

100B-250 Speedmullor

AFFECTED PART: Q-84700

REPLACEMENT PART: Q-217740

Tailored to operational and environmental conditions

Maximum performance and efficiency
Longer service life at an affordable/economical price
Tailored exactly to operational and environmental conditions

The Challenge

We frequently heard that foundries needed a superior gearbox tailored exactly to the operational and environmental conditions of today’s foundry.

Simpson Solution

To keep up with modern foundry demands we have made many significant innovations to our gearboxes. When comparing the HD Max gearbox to an old gearbox the HD Max its less expensive, more reliable and designed for a longer service life in a foundry environment.

The HD Max gearboxes for the Simpson Speedmullor® promise optimal results and offers many advantageous benefits including longer maintenance intervals and improved reliability. Learn more about these benefits and design features below.

Longer Maintenance Intervals

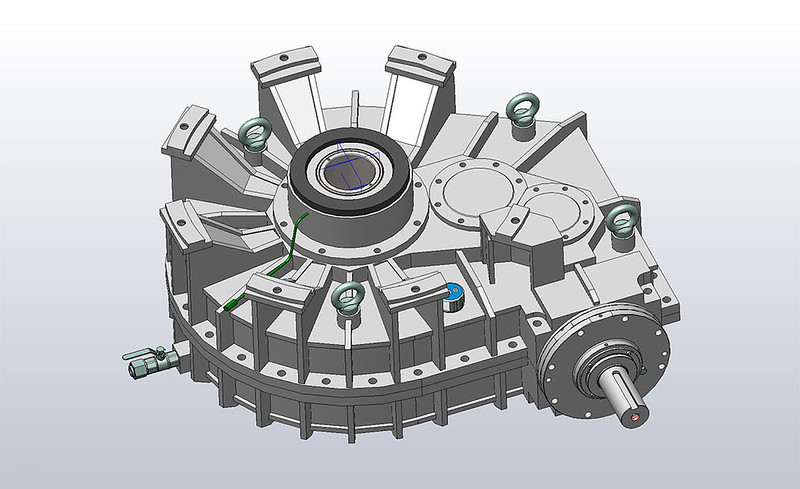

The HD Max gearbox is designed with a contactless sealing system for the input shaft so that the input shaft is not affected by wear. Loss of oil from the input shaft seals is a thing of the past. Additionally the HD Max gearbox is designed for optimal heat dissipation reducing the oil bath temperature prolonging oil life. These improvements result in extended time between oil changes.

Improved Reliability

The gearing topology of the HD Max gearbox has been optimized to reduce gearbox noise and increase the static overhung load rating of the input shaft. The bevel gear housing has been designed for improved oil flow to the high speed bearings. These improvements allow for optimized bearing preloads to reduce the formation of heat spots significantly increasing the bearing service life and thermal limit rating. This results in improved overall reliability and reduced risk of unexpected machine downtime.

Conversion Kit

Select models of the Beardsley & Piper or Simpson Speedmullors can be upgraded to the HD Max gearbox. Upgrading requires a one-time conversion. Engineering documents for the conversion are shipped with the conversion kit and includes hard copies of the gearbox assembly drawing, and the associated bill of material, the greasing schematic drawing, the oil filler and sight gauge drawing, as well as the gearbox technical specifications and the gearbox operation and maintenance instructions. Gearbox conversion-installation instructions are also provided.

Upgrade details

Model: 85B Speedmullor

Part Number: Q-220915

Conversion Kit Number: 220914

Replaces Part Number: Q-61522

Model: 100B-200 Speedmullor

Part Number: Q-218740

Conversion Kit Number: 218739

Replaces Part Number: Q-64756

Model: 100B-250 Speedmullor

Part Number: Q-217740

Conversion Kit Number: 217737

Replaces Part Number: Q-84700

Additional images

Browse through additional images to see more details and get a complete view of the product.
