Simpson Hartley Dosing System

Calculated Weight Based Bond Addition

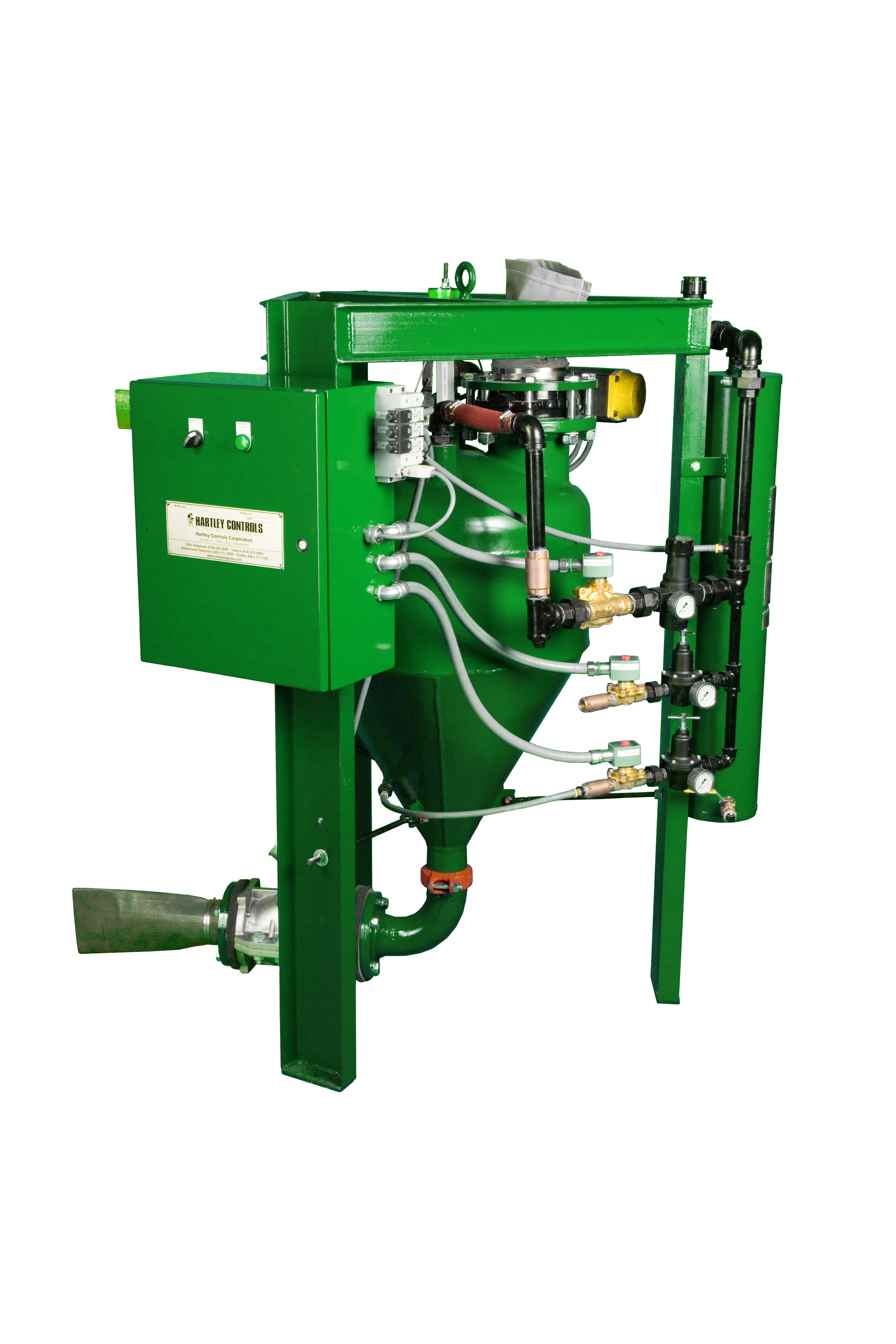

The Simpson Hartley Model 90Mk2 Additive Dosing System has been designed to provide precision weight control and pneumatic injection of dry materials (primarily bentonite/clay) to a muller in a fully automated mixer group. The 90Mk2 is designed to be used and integrated together with a Simpson Hartley Model 2502-L1 or 2552-B1 Compactability Controller and relies on the controller for automatic operation.

Let’s Build the Right Solution for Your Foundry

Hartley dosing | Monitizer

The 90Mk2 has two options depending on dosing needs:

  • The 90Mk2-1 with 1 ft3/ 0.028 m3 capacity
  • The 90Mk2-5 with 5 ft3/ 0.14 m3 capacity

Machine Specifications:
Dosing Device

  • One storage tank (ASME Code Stamped). The tank is equipped with a rotary actuator operated filler valve assembly including solenoids and limit switches, pressure safety relief valves and an air operated delivery line pinch valve assembly including solenoid and regulator.
  • One (1) set of software modifications or additions provided as needed for existing Simpson Hartley controller program or included with program installed in PLC of new control panel (if applicable).
  • One (1) load link, tension type load cell with transmitter for weight measurement.
  • One (1) air receiver (ASME Code Stamped) with pipe thread connections and drain valve mounted on tank.
  • One (1) set of solenoid valves & pressure regulators for bond fluidizer, delivery and delivery line purge.
  • One (1) rotary actuator operated tank exhaust valve assembly including solenoid & limit switches.
  • An enclosure containing Ethernet Point I/O to interface with the main control enclosure.

Available in Imperial
