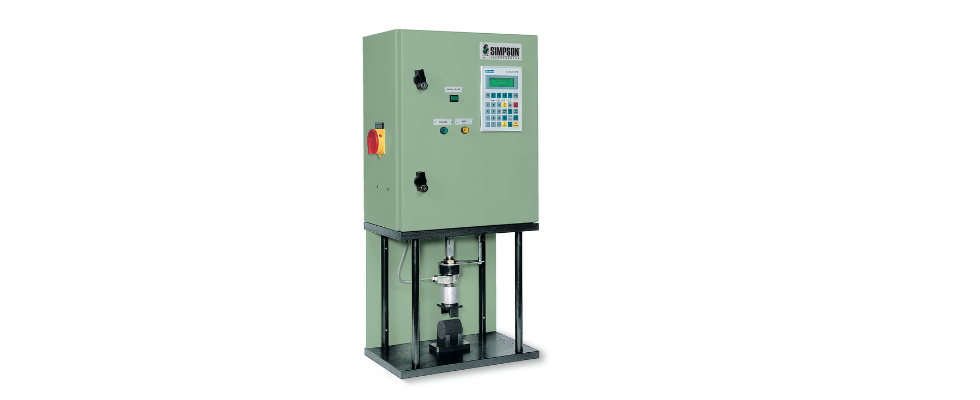

Minilab

Model PVF-C

$Refractory Coating Accessory | SIMPSON$

Part numbers

Metric: #592-820-650

Sand casting process

Hot & Cold Box
Green Sand

Specifications

Length: 32.6" / 830mm
Width: 15.7" / 400mm
Height: 9.8" / 250mm
Weight: 123.4 lbs / 56 kg
Power: 230 V - 50 Hz
Air Compressed: Min 5 bar | Max 10 bar

This multi-purpose instrument is used to determine strength properties of clay and/or chemically bonded sand specimens.

A versatile, multi-purpose instrument designed to evaluate the strength properties of both clay-bonded and chemically bonded sand systems. Ideal for foundry laboratories, the Minilab supports testing across a wide range of binder types, providing the flexibility needed for comprehensive sand quality control.

The Minilab produces a standard 50 mm x 50 mm cylindrical test specimen and, when used with additional accessories, performs a variety of essential sand strength tests, including:

Compactability
Compression strength
Splitting strength
Twin-transverse shear strength
Core transverse (bending) strength
Core tensile strength

With its ability to perform multiple tests on a single platform, the Minilab helps foundries efficiently monitor and optimize sand and binder performance, supporting consistent casting quality and improved process control.
