Transverse Core Box Accessory (9 Cavity)

Model 42103A

Transverse Core Box Accessory (9 Cavity)

Specifications

Part numbers

AFS: #0042103A
Metric: #0042103A-M

Sand casting process

Cold Box
Nobake/Air-set

Specifications

Length: 12" / 305mm
Width: 17.25" / 438mm
Height: 1.5" / 338mm
Weight: 8lb / 3.6kg

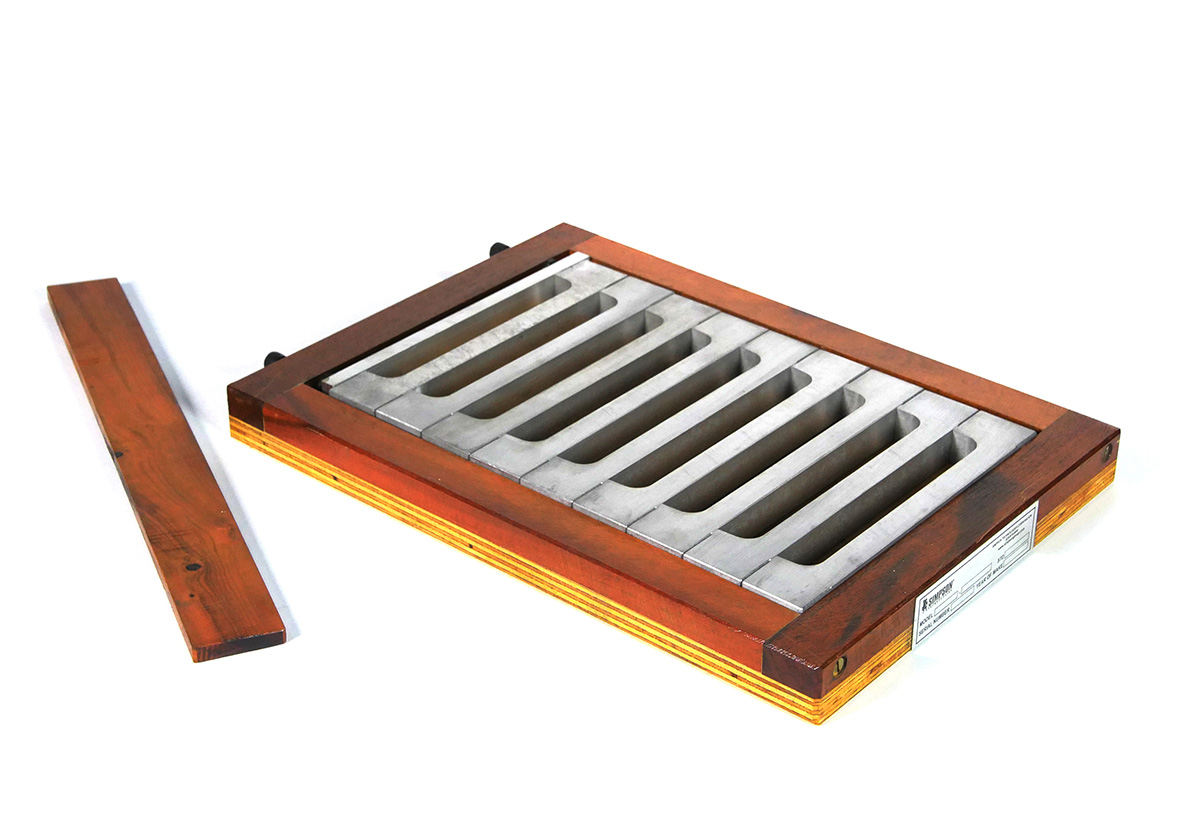

The Transverse Core Box Accessory is used to make standard specimens for transverse strength testing using self-curing (air-set) sands.

Three, 3-cavity core boxes are inside the hard wood frame which makes a total of nine dog bone sand samples that can be molded simultaneously. AFS specimen dimensions are 8 in. x 1 in. x 1 in. and metric specimen dimensions are 22.4mm x 22.4mm x 175mm.

Components Included: Strike off bar

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Need More Information

Related Content

Model 42100

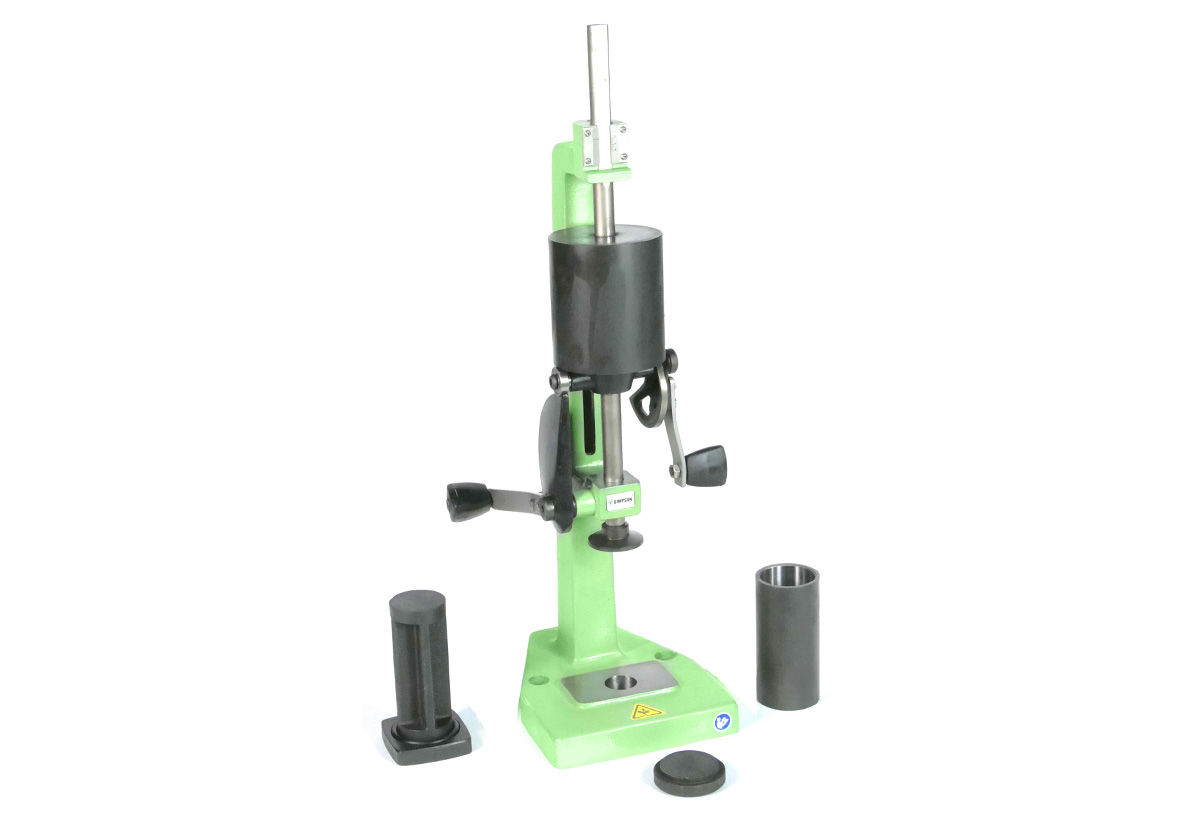

Sand Rammer - Model 42100

Used to prepare a standard AFS 2 in. x 2 in. (Metric 50 mm x 50 mm) cylindrical sand specimen for compression, shear, splitting, deformation and tensile tests.

Model 42100A

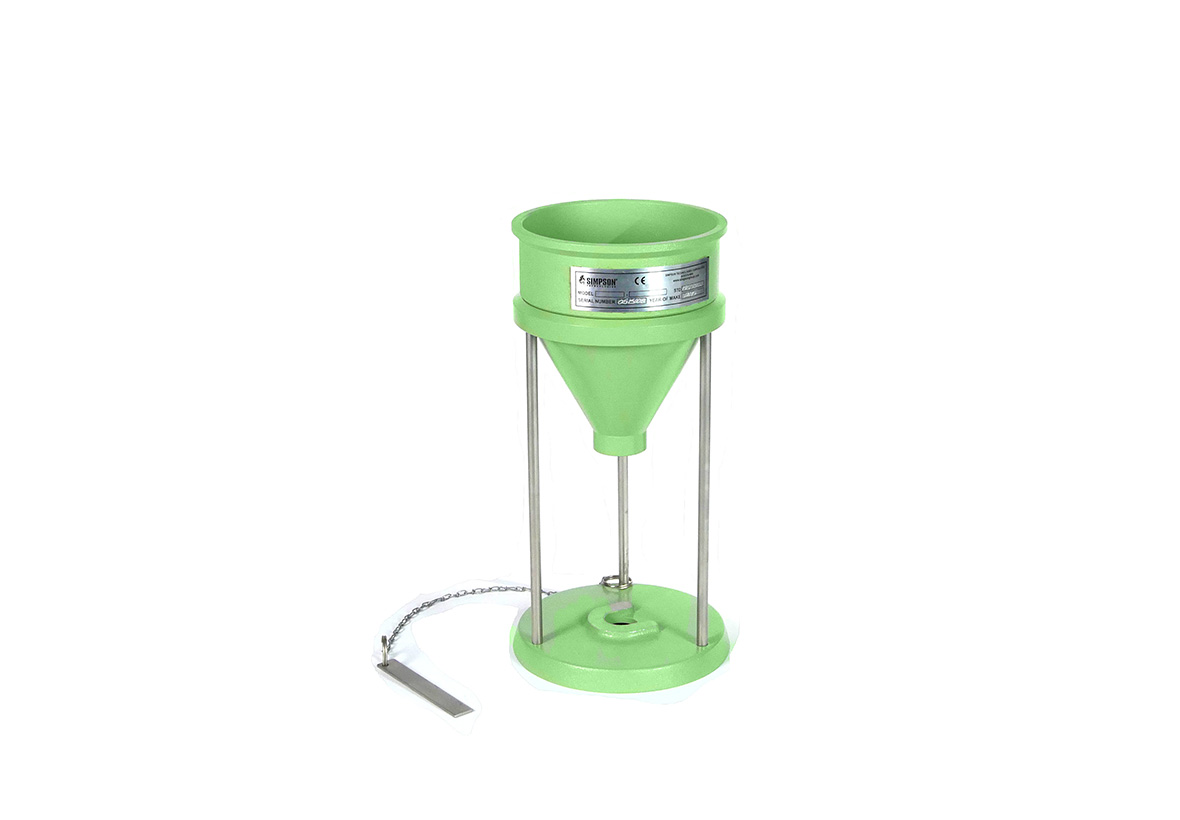

Tube Filler Accessory - Model 42100A

Assists in filling the specimen tube for compactability tests.

Model 42100C

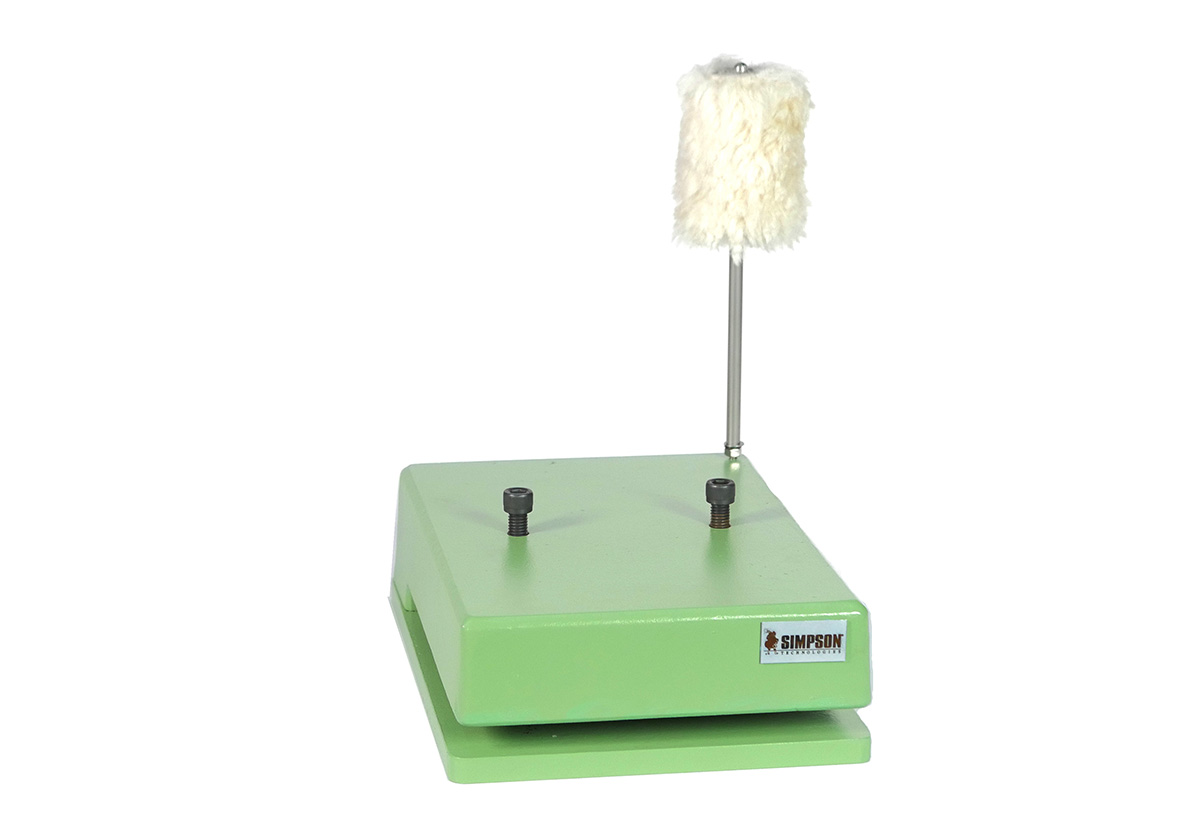

Sand Rammer Base - Model 42100C

To ensure consistent and accurate readings, the Sand Rammer (Model 42100) needs to be isolated from vibration variations.

Model 42100D

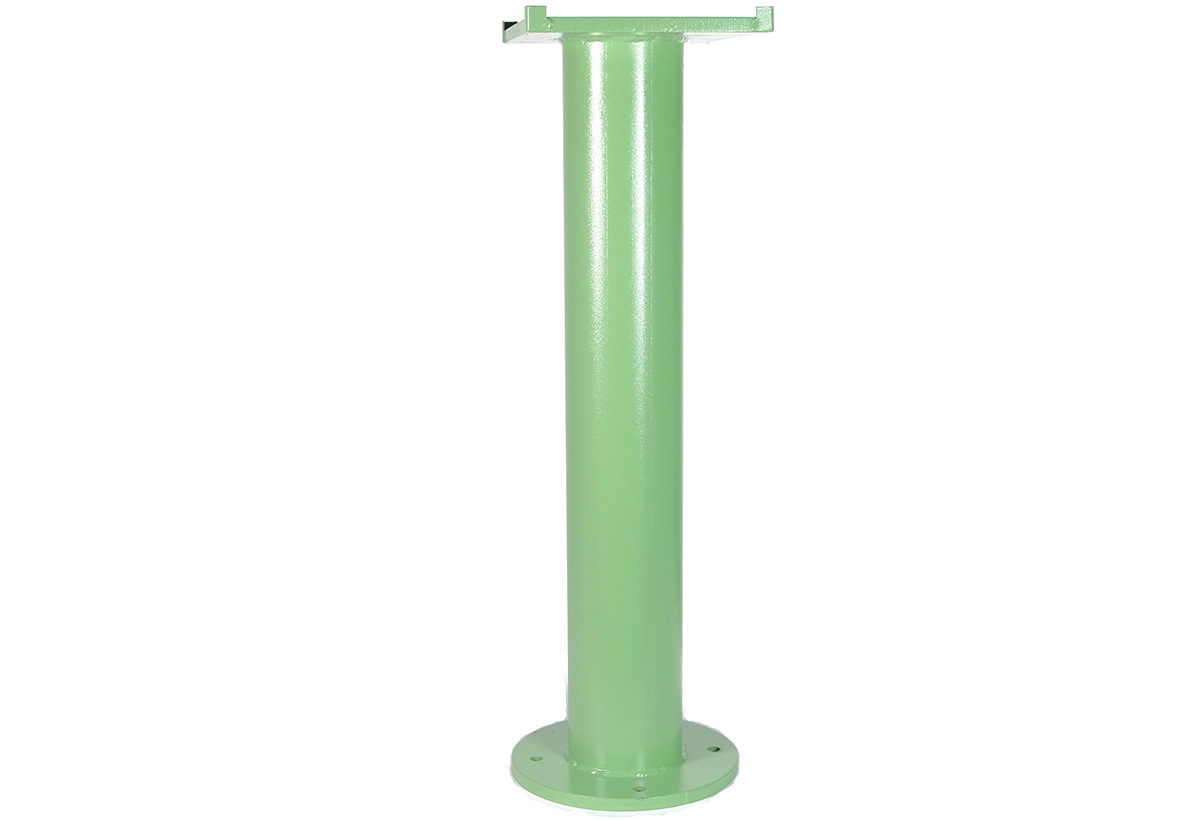

Sand Rammer Pedestal - Model 42100D
