Tensile Core Box Accessory (9 Cavity)

Model 42103

Tensile Core Box Accessory (9 Cavity) | Model 42103 | SIMPSON

Part numbers

AFS: #0042103
Metric: #0042103-M

Sand casting process

  • Cold Box
  • Nobake/Air-set

Specifications

Length: 13" / 330mm
Width: 9.5" / 241mm
Height: 2" / 51mm
Weight: 8lb / 3.6kg

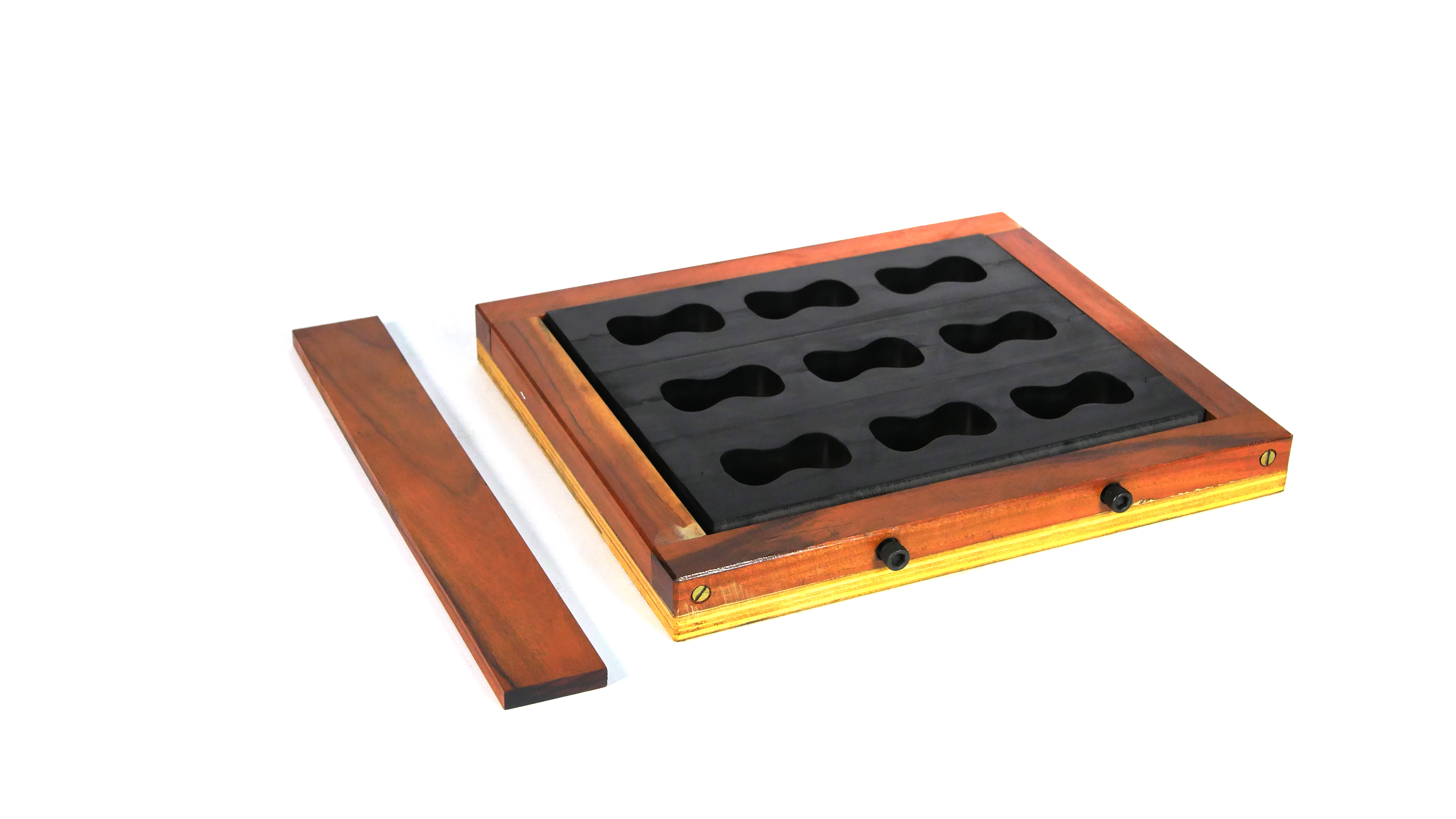

The Tensile Core Box is used to make standard specimens for tensile strength testing using self-curing (air set) sands.

This core box molds nine dog bone sand samples simultaneously. It consists of three, 3-cavity core boxes inside of a hard wood frame. A strike off bar is included.

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Need More Information

Related Content

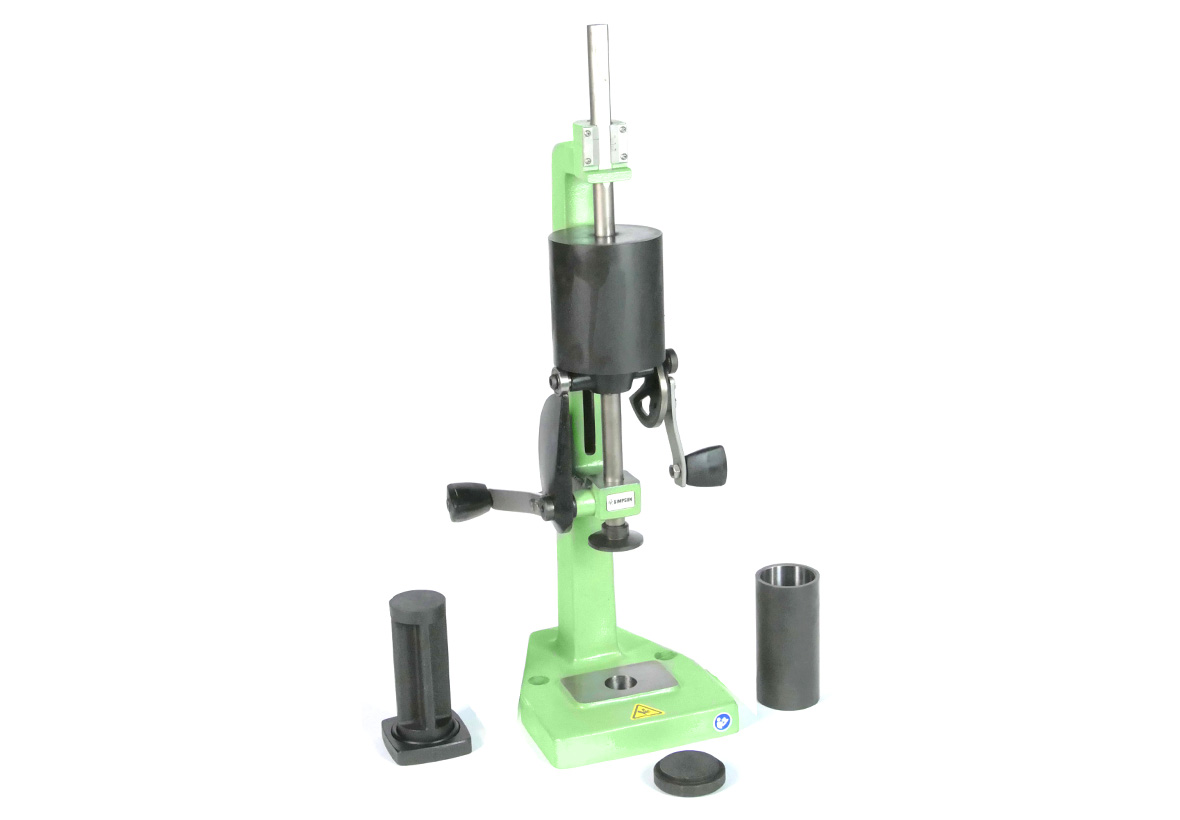

Sand Rammer | Model 42100 | SIMPSON

Sand Rammer - Model 42100

Used to prepare a standard AFS 2 in. x 2 in. (Metric 50 mm x 50 mm) cylindrical sand specimen for compression, shear, splitting, deformation and tensile tests.

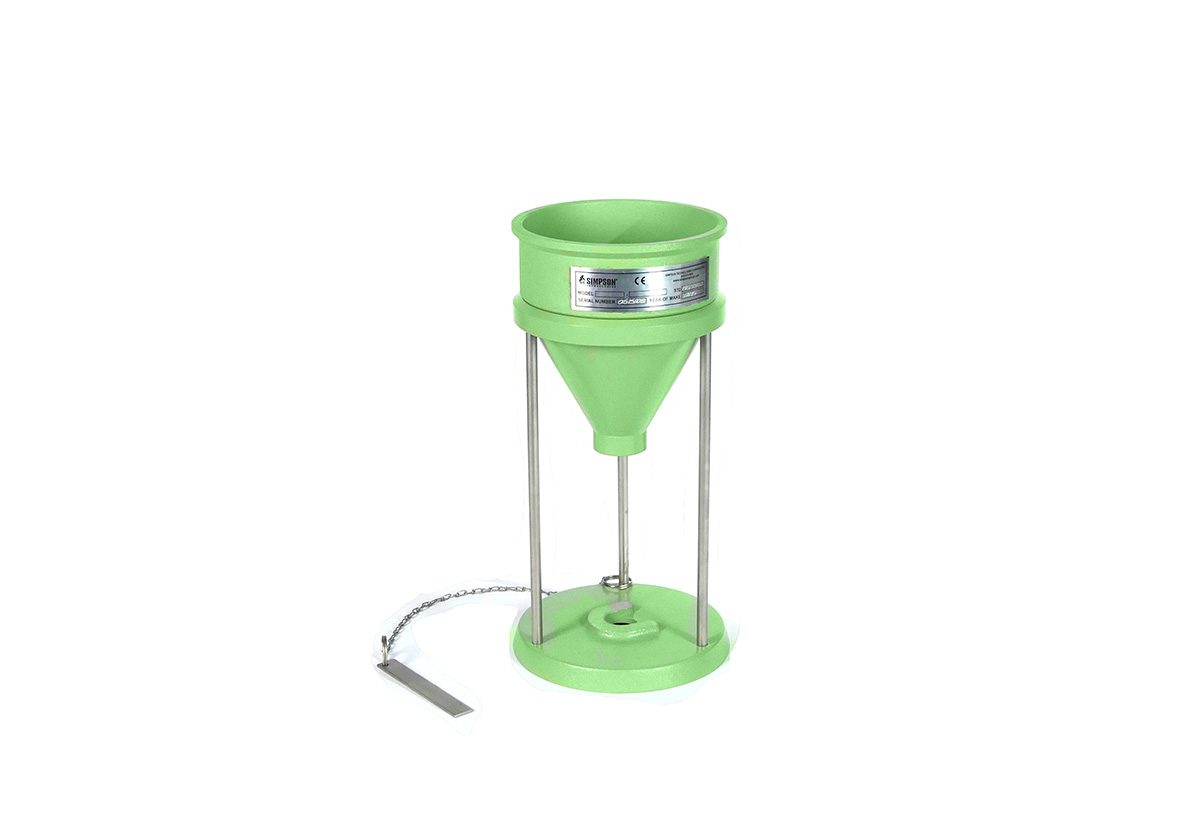

Tube Filler Accessory | Model 42100A | SIMPSON

Tube Filler Accessory - Model 42100A

Assists in filling the specimen tube for compactability tests.

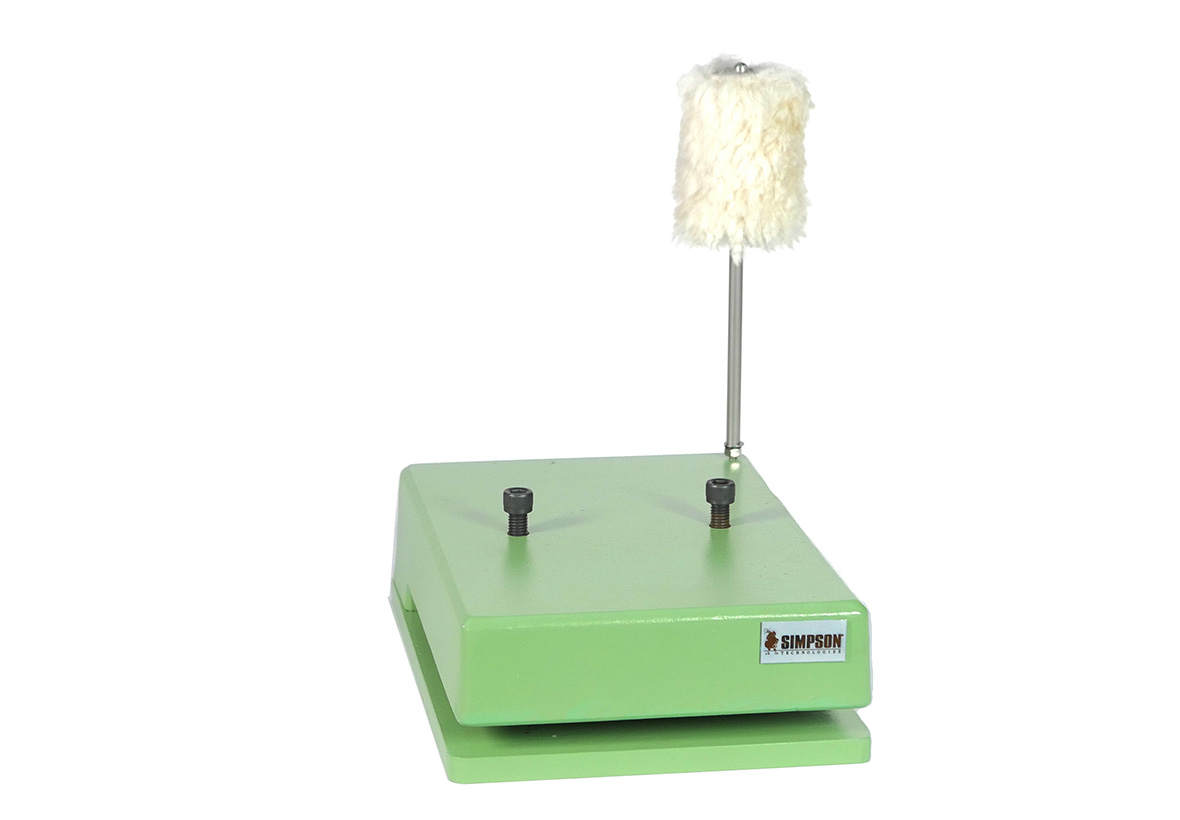

Sand Rammer Base | Model 42100C | SIMPSON

Sand Rammer Base - Model 42100C

To ensure consistent and accurate readings, the Sand Rammer (Model 42100) needs to be isolated from vibration variations.

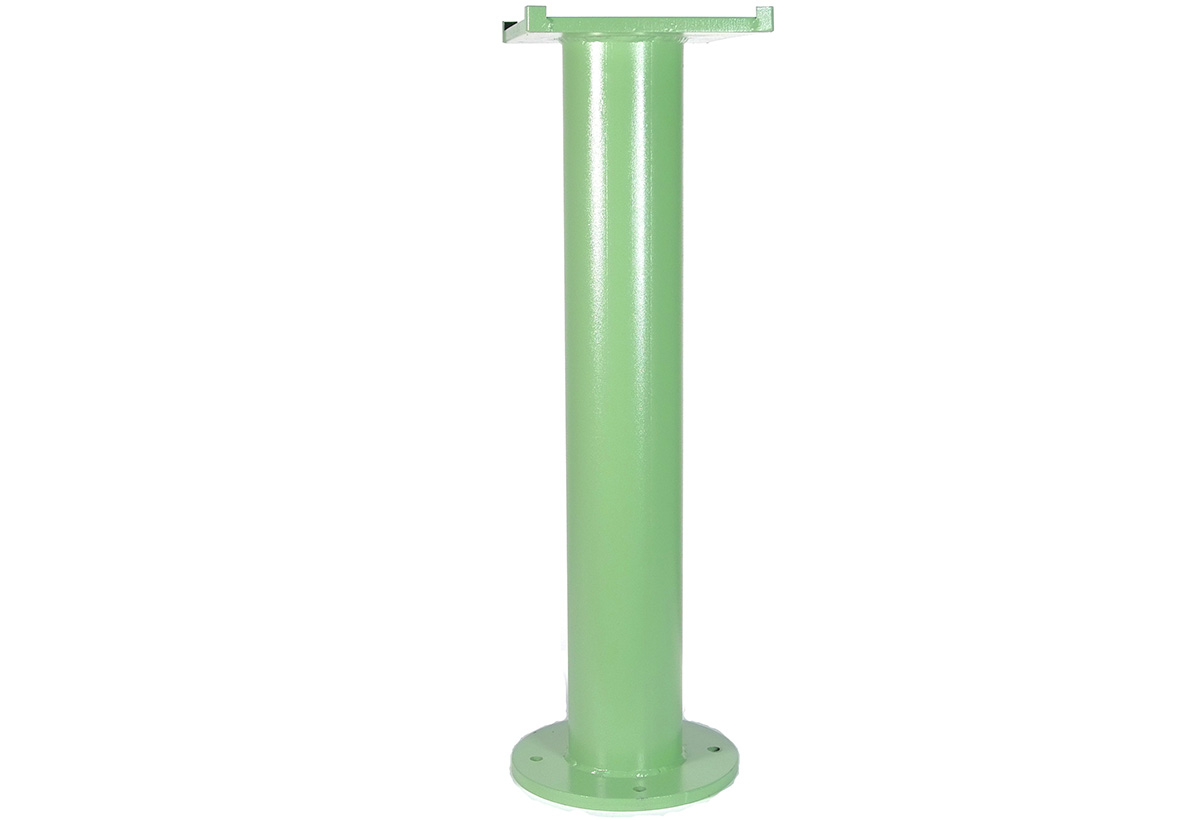

Sand Rammer Pedestal | Model 42100D | SIMPSON
