Tube Filler Accessory

Model 42100A

Tube Filler Accessory | SIMPSON

Part numbers

AFS: #0042100A
Metric: #0042100A-M

Sand casting process

  • Clay Bonded Sand
  • Nobake/Air-set

Replacement parts

Screen Part Number: 0045640

Specifications

Length: 2.5" / 64mm
Width: 2.5" / 64mm
Height: 2" / 51mm
Weight: 1lb / 0.5kg

The Tube Filler Accessory assists in filling the specimen tube for compactability tests.

It assures that properly riddled sand fills the specimen tube from a standard and fixed distance. Utilized With: Sand Rammer (Model 42100), Digital Pneumatic Sand Squeezer (Model 42160) and Pneumatic Sand Squeezer (Model 42117).

Need More Information?

Contact Simpson to learn more about our innovative solutions and how we can support your operation. We are here to help if you have any questions or need assistance.

Need More Information

Related Content

Sand Rammer | Model 42100 | SIMPSON

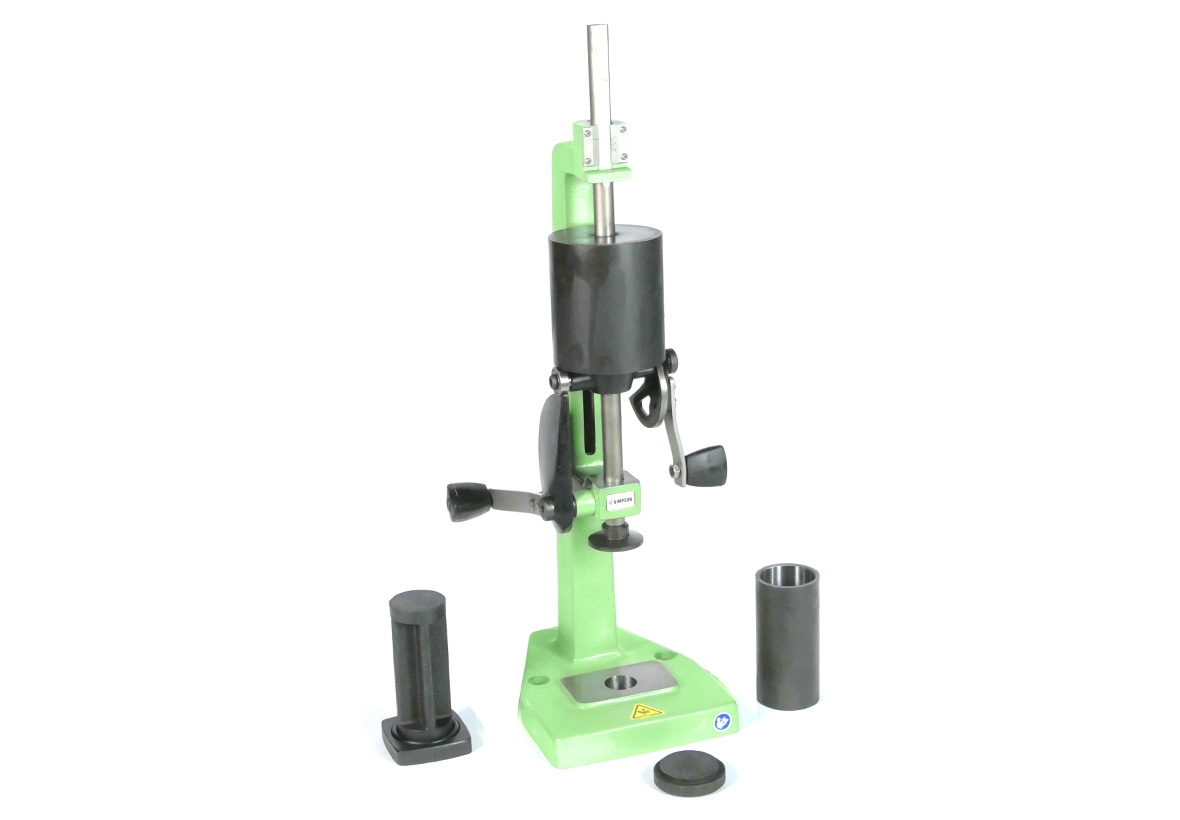

Sand Rammer - Model 42100

Used to prepare a standard AFS 2 in. x 2 in. (Metric 50 mm x 50 mm) cylindrical sand specimen for compression, shear, splitting, deformation and tensile tests.

Sand Rammer Base | Model 42100C | SIMPSON

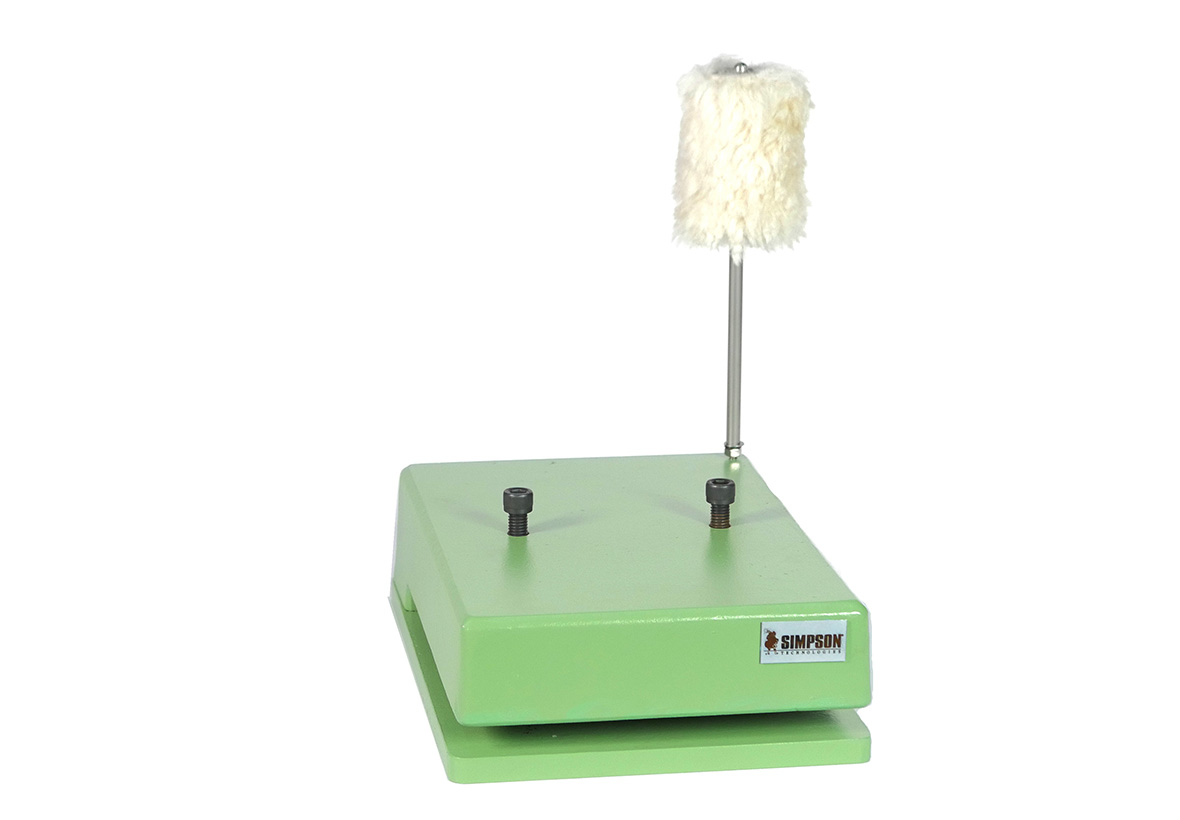

Sand Rammer Base - Model 42100C

To ensure consistent and accurate readings, the Sand Rammer (Model 42100) needs to be isolated from vibration variations.

Sand Rammer Pedestal | Model 42100D | SIMPSON

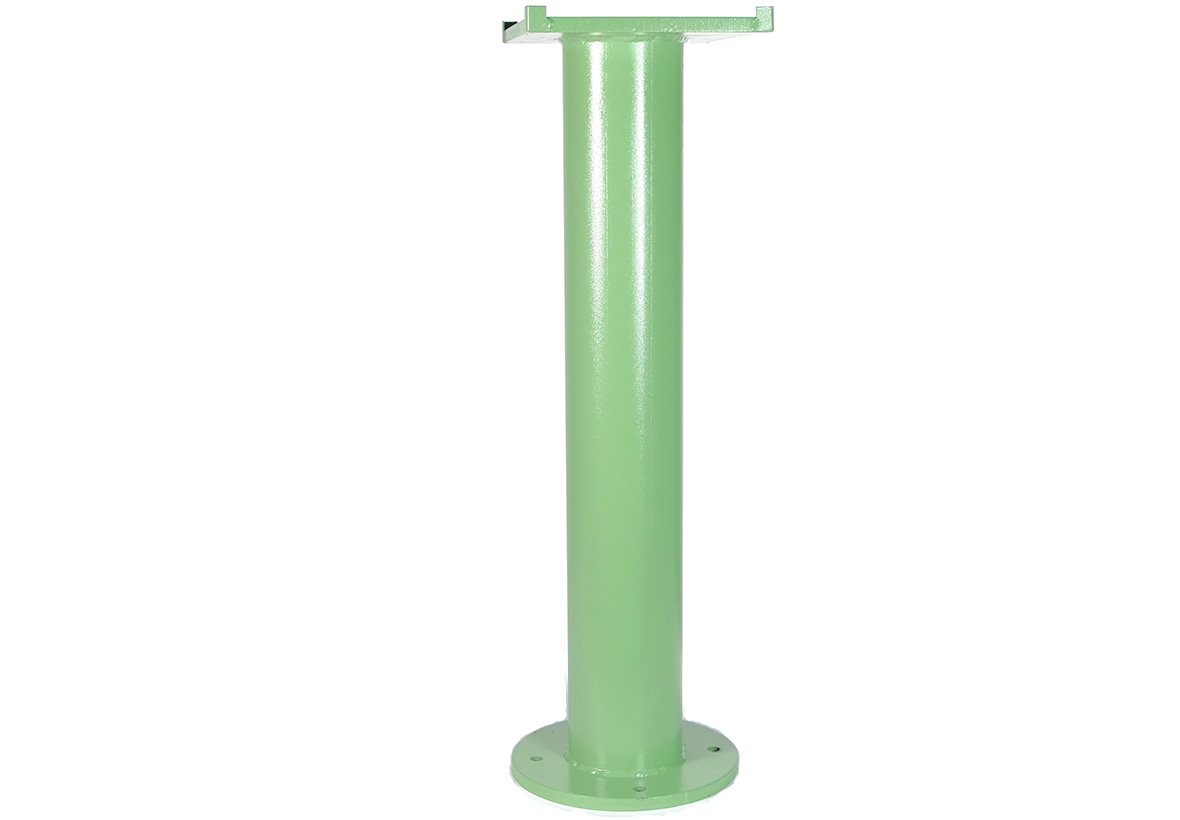

Sand Rammer Pedestal - Model 42100D
