Bucket Elevator

Reliable. Robust. Easy to Maintain.

With the acquisition of Webac Gesellschaft für Maschinenbau GmbH, Simpson has been able to expand support for the foundry industry.

The Webac CC Series Bucket Elevator has been designed to be heavy-duty for green sand foundry applications. Engineered to meet each foundry’s needs with varying height ranges, bucket sizes, pully head sizes, and capacities.

Webac CC Series Bucket Elevator is engineered to operate automatically and is normally interlocked with other foundry support equipment, e.g. the cooler or mixer, raw material delivery systems, etc.

The bucket elevator featured on the right has a self-tensioning mechanism this can be ordered optionally to minimize maintenance and extend process reliability.

Bucket Elevator | Simpson

The Webac CC Series Bucket Elevator consists of:

  • head segment made of welded steel plates including inspection flaps, outlet funnel and connecting flange for exhausting
  • driving pulley rubberized as well as crowned and true machined, traversing shaft with outer bearing, geared engine with torque support and electrical controlled brake
  • standard segments, assembly segment and adjusting segment made of welded and stiffened steel plates, insides of all segments coated with plastic vanish
  • base segment including inspection flaps, inflow funnel made of stainless steel, sand flashing above ribbed idler pulley, traversing shaft with outer bearing and spindle tension device
  • elevator buckets made of stainless steel with wearing strips, elastic washers and self-centering fixing bolts, rubber belt with fixing holes
  • electronic speed monitoring

Available in Metric

Related Content

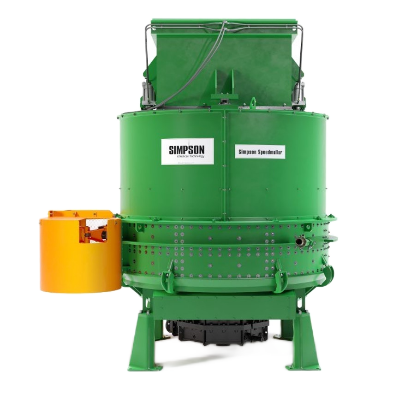

Speedmullor | Simpson

Simpson Speedmullor

The best features of high-intensity batch mixers in a single design — the mixing performance and energy efficiency of mulling with the productivity of a high-speed, high-intensity mixer.

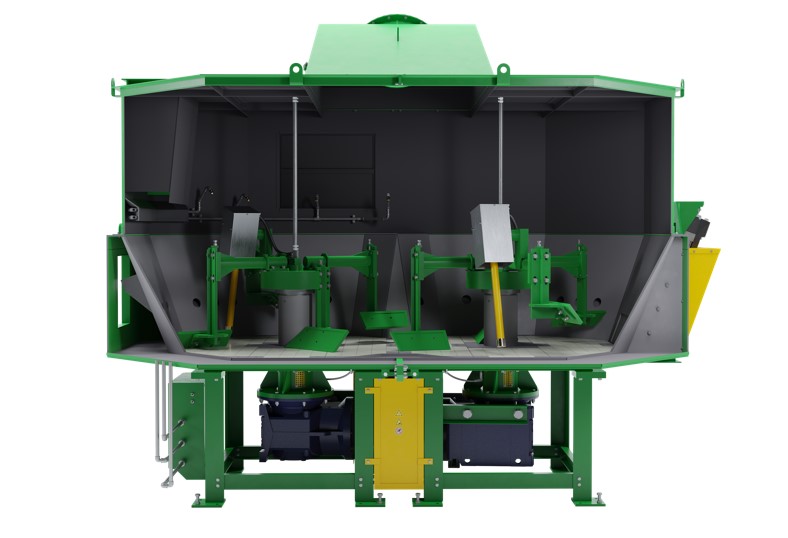

Multicooler | Simpson

Simpson Multi-Cooler

Pre-conditions sand, to lower and reduce variability in sand temperatures. The result - optimal mulling and high-quality, profitable castings.

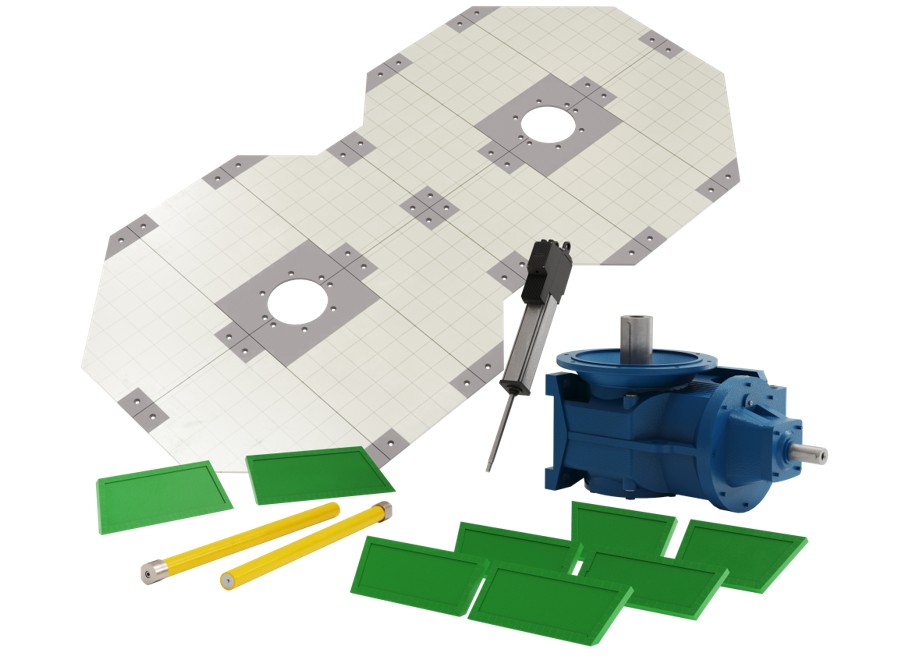

Spare Parts | Simpson

Spare Parts

Engineered and designed to provide maximum performance and efficiency. The right specifications made from the original designs.

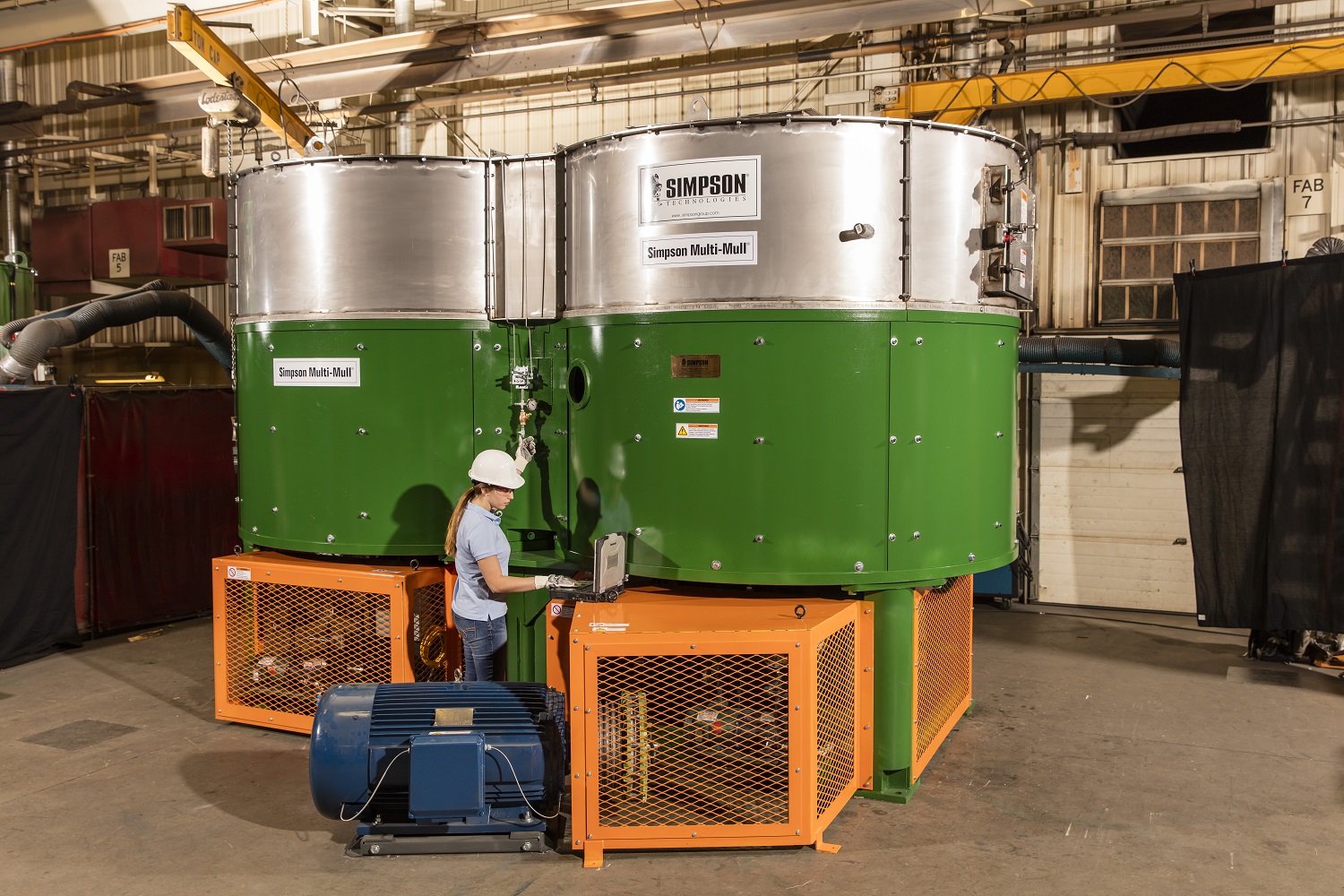

Service | Simpson
